You use the wave soldering process in SMT assembly to join parts to a printed circuit board. The main steps are setup, PCB placement, fluxing, preheating, soldering, cooling, cleaning, and inspection. Each step helps make strong solder joints and dependable electronic products.
Wave soldering connects many parts to a PCB fast. The board goes over melted solder. This makes strong electrical connections. It works well for through-hole and some surface mount parts.
You must follow each step carefully. These steps are setup, placement, fluxing, preheating, soldering, cooling, cleaning, and inspection. Doing this helps stop defects. It also makes sure the circuit boards are good and work well.
Regular maintenance is important. Operator training is needed too. Using real-time data helps control the process. These things make soldering better. They lower mistakes and keep the assembly line working well.
Wave soldering connects many electronic parts to a PCB at once. A conveyor carries the PCB over melted solder. The solder touches metal leads and pads. This makes strong electrical links. In SMT assembly, you glue surface mount parts to the PCB first. This stops them from moving during soldering. The table below gives important facts about wave soldering:
Aspect | Description |
---|---|
Process Definition | Soldering many parts at once as a PCB moves over melted solder. In SMT, parts are glued before soldering. |
Application in SMT | Used for glued surface mount parts on PCBs. Mostly for through-hole, but sometimes for SMT too. |
Equipment | Conveyor, solder pan, pump for the wave, flux sprayer, preheating pad. |
Solder Types | Leaded solder (tin, lead, antimony) and lead-free types (like tin-silver-copper). |
Industry Standards | IPC-7530 for checking heat; SPC for process control. |
Process Parameters | Heat checks, wave height, contact time (2-4 seconds), wave types (laminar, dancer). |
Measurement Tools | Tools for checking heat, contact time, wave height, and flatness. |

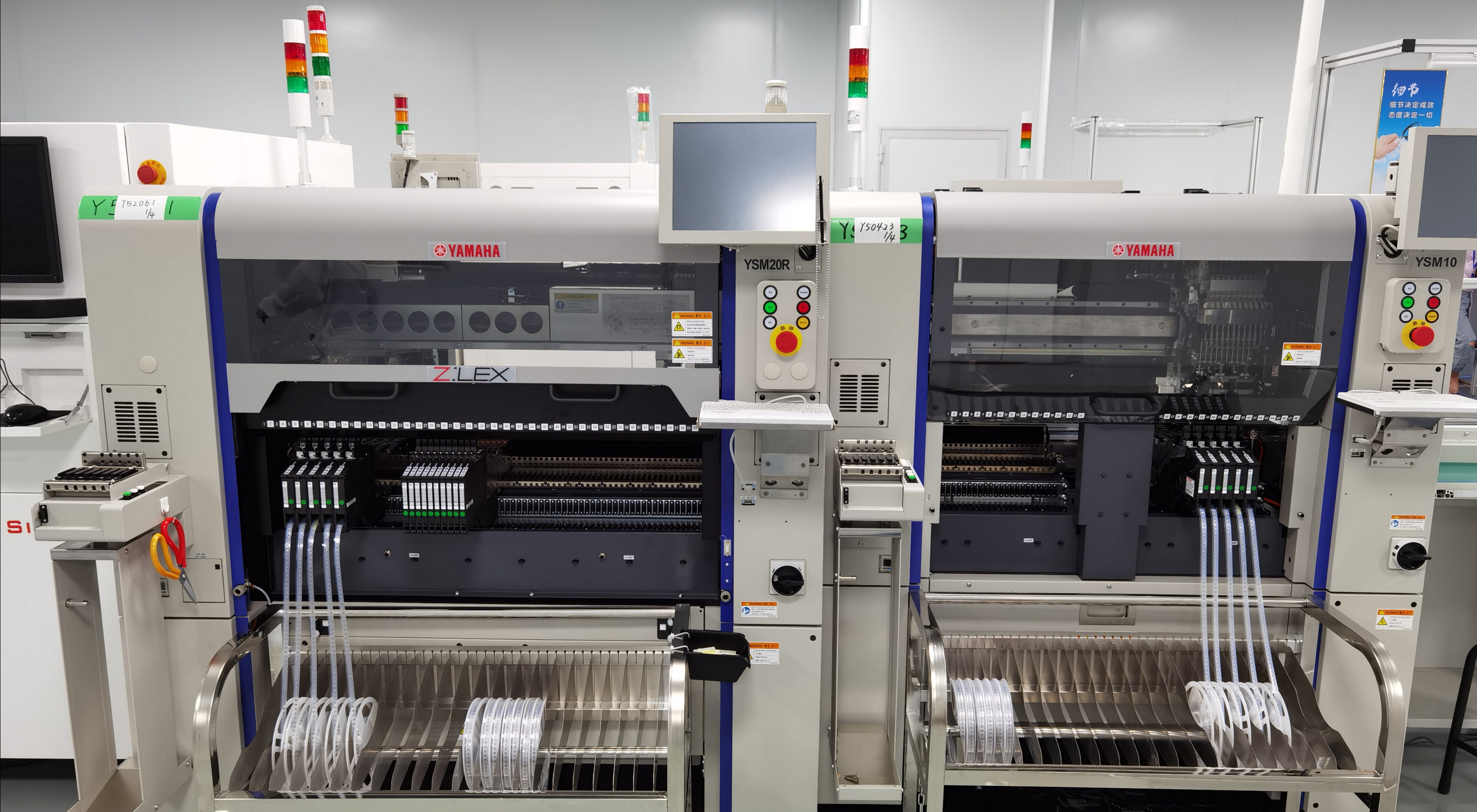

Wave soldering is important in electronics history. In the 1980s, people soldered by hand. This was slow and caused mistakes. Later, machines started placing and soldering parts. Wave soldering made assembly faster and less manual. Today, it is used mostly for through-hole parts. But it is still used in SMT when both surface mount and through-hole parts are on one board. This process makes strong connections and helps make many boards quickly.
You start the wave soldering process by setting up the equipment. Check that the solder bath has the right amount of solder. Set the temperature to match the type of solder you use. Adjust the conveyor speed so the PCB moves at the correct pace. Make sure the flux applicator and preheater work well. You also need to check safety systems. This step helps prevent problems later in the process.
Next, you place the printed circuit boards onto the conveyor. Make sure each PCB sits flat and lines up with the guides. If you use surface mount parts, glue them to the board first. This keeps the parts from moving during soldering. Good placement helps you avoid misalignment and soldering defects.
You apply flux to the bottom of the PCB. Flux removes oxides from metal surfaces. It helps solder flow and stick to the pads and leads. You can use a spray, foam, or wave fluxer. Make sure you cover all areas that need soldering. Too much or too little flux can cause defects.
You heat the PCB before it touches the solder wave. Preheating dries the flux and reduces thermal shock. It also helps the solder flow better. You set the preheater to the right temperature for your board and components. Watch the board as it moves through the preheater to make sure it heats evenly.
Now, the PCB passes over the solder wave. The molten solder touches the leads and pads. This step forms the electrical connections. You control the wave height and contact time. Most boards need 2 to 4 seconds in the solder wave. If you set the wave too high or too low, you can get poor joints or bridges. You must watch this step closely to ensure good results.
After soldering, you cool the PCB. Cooling lets the solder solidify and form strong joints. You can use fans or let the board cool in the air. Fast, even cooling helps prevent cracks and other defects. Do not move the board until the solder hardens.
You clean the PCB to remove flux residue and any unwanted particles. Some fluxes are no-clean, but others need washing. You can use water, solvents, or special cleaning machines. Clean boards look better and work more reliably. Cleaning also helps you spot defects during inspection.
You inspect the soldered boards to find defects and check quality. Use visual checks, magnifiers, or automated systems. Inspection helps you catch problems early. Many factories use Solder Paste Inspection (SPI) systems. These systems measure solder volume, height, and position with high accuracy. SPI can increase first-pass yield by up to 25% and cut quality costs by over 30%. You can also use X-ray, cross-section analysis, and stress tests to check joint strength and reliability. By using these methods, you prevent defects and reduce waste. Continuous data from inspection helps you improve the wave soldering process and make better boards.
Tip: Rigorous inspection and data analysis help you catch problems before they reach your customers. This approach saves time and money and improves product reliability.
You use the flux applicator to coat the bottom of each PCB with flux. This tool can spray, foam, or wave the flux onto the board. A good flux applicator covers all areas that need soldering. If you miss spots, you may see poor solder joints. If you use too much, you might get residue or bridging. You should check the applicator often to keep the process stable.
The preheater warms the PCB before it meets the solder wave. This step helps the solder flow and prevents thermal shock. Studies show that real-time temperature checks can reveal up to 20°C differences in preheat zones if insulation is poor. You can improve stability by letting the machine soak for 10 minutes after a cold start. Adjusting exhaust flow and using several thermocouples along the tunnel helps keep the heat even. When you set the preheater to the right temperatures, you get better solder joints and fewer defects.
Real-time monitoring finds temperature changes in preheat zones.
Soak time after cold start improves thermal stability.
Adjusting exhaust flow keeps preheat temperatures steady.
Multiple thermocouples help spot hidden temperature changes.
The solder bath holds the molten solder. You must keep the solder at the right temperature for your process. Accurate temperature checks inside the solder pot help you control the process. If you set the solder temperature above 230°C, you can lower bridging defects to less than 0.30%. You should also watch the solder level and remove dross to keep the bath clean.
The conveyor system moves the PCB through each stage of wave soldering. You set the speed to match your board and solder type. For example, a speed of 1000 mm/min with a solder temperature of 235°C can reduce defects. The conveyor must hold the board flat and steady. If the board shifts, you may see misalignment or poor solder joints.
After soldering, you use the cleaning system to remove flux residue and particles. Some systems use water, while others use solvents or special machines. Clean boards look better and work more reliably. A good cleaning system helps you spot defects during inspection and keeps your products safe.
Quality control starts with visual inspection. This step helps you find easy-to-see problems. You look for bad solder joints, bridges, or missing parts. Magnifiers or microscopes help you see small things. Tracking important quality numbers makes this step better. The table below lists key facts that help keep your process steady and safe:
Quality Metric / Inspection Statistic | Description |
---|---|
Dwell Time and Parallelism per Board | Each PCB’s contact time and alignment are checked automatically. This makes sure the board is in the solder wave long enough and stays straight. |
Complete PCB Temperature Profile | The board’s temperature is tracked during preheat and soldering. This helps you check if the heat is even and right. |
Real-time SPC/Cpk Charting | Special charts and numbers show if your process is stable. They update as you work, so you can spot problems fast. |
Process Control and Traceability | Each board’s data is saved with a barcode. This lets you trace every board and check if it was set up right. |
Automatic Profile Data Collection | Sensors and software collect heat and process data by themselves. This lowers mistakes from people. |
Process Window Index (PWI) and Alarms | Software checks if things go wrong and sets off alarms. This helps you fix problems before they get worse. |
Real-time Analysis and Troubleshooting | Easy-to-use tools show changes and help you find issues fast. This supports what you see during inspection. |
Tip: Using these numbers helps you spot problems early and keep your boards good.
Automated Optical Inspection, or AOI, uses cameras and software to check each board. AOI finds tiny problems that are hard to see with your eyes. It looks for small solder bridges or missing parts. AOI scans boards fast and compares them to a perfect picture. This gives you quick results and helps you fix mistakes before moving on. AOI also saves data to help make your line better and more dependable.
You end quality control with functional testing. This step checks if the board works in real life. You measure things like First Pass Yield, Defects Per Million Opportunities, and Mean Time Between Failures. These numbers show how well your process works and how long boards last. When you use data from solder paste checks, AOI, and electrical tests, you get a full view of your line’s health. This helps you find and fix where problems start.
Functional Test is the last check and acts like real use. It gives a clear pass or fail.
First Pass Yield tells you how many boards pass without fixing.
Mean Time Between Failures shows how long your product lasts.
AOI, In-Circuit Testing, and Functional Test together make a strong quality check.
For products that must be very reliable, extra tests like Burn-in Testing and AXI make sure boards can handle hard use.
Solder bridges happen when pads connect by mistake. This can happen if the solder wave is too high. Using too much flux can also cause it. Solder bridges may make short circuits. You can stop this by checking the solder wave height. Make sure the PCB is flat on the conveyor. Clean the solder bath often to help prevent this.
Cold joints form if solder does not melt all the way. They can also form if the solder cools too fast. These joints look dull or rough. They can break easily and do not connect well. You can stop cold joints by keeping the solder temperature steady. Make sure the preheater works right. Watch the solder bath for changes and fix problems fast.
Insufficient solder means there is not enough solder in the joint. This makes the joint weak or unable to carry enough current. It can happen if the solder temperature is too low. It can also happen if the conveyor moves too fast. Real-time thermal profiling systems help you watch temperature and speed. These systems give alerts if something is wrong. This keeps your process safe.
Defect Type | Possible Causes | Implications on Solder Quality and PCB Performance |
---|---|---|
Insufficient Solder | Joints too thin for current load, risk of bridging, poor strength |
Parameter | Condition/Value | Effect on Solder Joint Quality and Defect Rate |
---|---|---|
Peak solder temperature | Bridging defect rate drops below 0.30% | |
Solder joint temperature | ≥ 220 °C | 100% vertical filling, fewer voids |
Conveyor speed | 1000 mm/min | Maintains temperature, reduces defects |
Preheating temperature | 105-145 °C | Keeps flux working, fewer voids |
Doing regular maintenance helps stop insufficient solder.
Training operators helps prevent mistakes.
Automated inspection and data checks help you find problems early.
Misalignment happens when parts move during soldering. This can happen if the conveyor is too fast. It can also happen if the PCB is not flat. Misaligned parts can cause open circuits or test failures. You can fix this by checking the conveyor alignment. Make sure each board sits flat before soldering.
You can improve your assembly line by watching your process closely. Start by tracking key numbers like solder temperature, conveyor speed, and preheat time. Use charts to see if your process stays steady. If you find a problem, change one thing at a time and check the results. Try to keep your process inside the best range for each setting. This helps you make strong solder joints and fewer mistakes.
Tip: Use real-time data to spot changes early. Quick action can stop small problems from becoming big ones.
Regular care for your machines keeps your line running well. Clean the solder bath and flux applicator every day. Check the conveyor for loose parts or dirt. Replace worn-out parts before they break. Write down each maintenance task in a logbook. This record helps you see patterns and plan repairs before trouble starts.
Clean machines work better and last longer.
A maintenance log helps you track what you have done.
You need skilled people to run your assembly line. Train each worker on safety, machine use, and inspection steps. Use simple guides and pictures to help them remember. Hold short training sessions often. Ask workers to share tips and report problems. Good training helps everyone spot mistakes and fix them fast.
Training Focus | Why It Matters |
---|---|
Safety | Prevents injuries |
Machine Operation | Reduces errors |
Inspection | Finds defects early |
You can make good PCBA boards by doing each step right. Pay attention to setup, placement, fluxing, and preheating. Soldering, cooling, cleaning, and inspection are also important. Check quality at every step. Follow best practices to stop mistakes and get better boards.
Remember, working carefully helps you build strong and reliable boards.
Flux cleans metal surfaces. You use it to help solder stick to pads and leads. It also stops oxidation during the soldering process.
Tip: Always check that you cover all soldering areas with flux.
You set the correct solder wave height. You keep the PCB flat on the conveyor. You also clean the solder bath often to avoid extra solder buildup.
You use wave soldering mostly for through-hole parts. Some larger SMT parts work with wave soldering, but most small SMT parts need reflow soldering.
