Inside Modern Turnkey PCBA Manufacturing Factories: Advanced Equipment and Quality Control Systems
Advanced machines and good quality systems make modern turnkey pcba manufacturing special. Turnkey factories like LTPCBA use connected steps for pcb design, getting parts, assembly, and testing. These systems help pcba quality and make them more reliable. Environmental and statistical tests in pcb manufacturing help customers stay happy and make pcba products last longer.
Key Takeaways
Modern turnkey PCBA manufacturing makes production much faster. It can be up to 60% quicker. It also makes the quality better. The first pass yield is between 95% and 98%. This helps companies save time. It also helps them make fewer mistakes.
LTPCBA uses advanced machines. These include automation, AI, and X-ray inspection. These machines help make PCBA fast and reliable. The cycle time is only 12 hours. The on-time delivery rate is 97%.
LTPCBA has strong quality control. They track data in real time. They do many inspections. They have certifications like ISO and UL. This makes sure every PCBA is safe and works well.
Turnkey PCBA Manufacturing
Modern Turnkey PCBA
Modern turnkey pcba manufacturing changes how companies make electronics. In this system, one company does every step. They handle pcb design, get parts, assemble, and test. Companies like LTPCBA offer these services to help customers save time and avoid mistakes. When all steps happen in one place, teams work better together. People talk more clearly, and projects finish faster.
Turnkey pcba manufacturing has many good points. It can make production up to 60% faster. First pass yield rates can reach 98%. On-time delivery can be as high as 97%. These numbers show that modern factories give reliable results. The process also lowers the chance of mistakes. Customers do not need to talk to many vendors. They work with one team that does everything.
Key Performance Metric | Value / Range |
|---|---|
Lead Time Reduction | Up to 60% faster production |
First Pass Yield (FPY) | 95% to 98% |
On-Time Delivery Rate | Up to 97% |
Defects Per Million Opportunities (DPMO) | Between 500 and 1000 |
Order Fulfillment Rate | 90% to 95%, up to 98% |
Scrap Rate | As low as 2% to 5% |
Customer Return Rate | Below 1% |
Production Cycle Time | Approximately 12 hours |
Production Capacity Increase | Up to 300% |
Turnkey pcba factories use new technology to help each step. They use automation, robotics, and smart sensors. These tools put small parts on pcb boards very accurately. AOI and X-ray machines look for problems. SPC checks data and finds patterns. This helps fix issues early and keeps quality high.
Note: Modern turnkey pcba factories follow strict rules like IPC-6012 and IPC-A-600. These rules make sure every pcb is strong and high quality.
Many industries use modern turnkey pcba. Medical device companies need reliable pcba for important equipment. Car makers use turnkey pcba for electric vehicles that get hot and shake. IoT start-ups use turnkey pcba to move from ideas to big orders fast. These examples show how turnkey pcba helps many companies grow.
LTPCBA’s Advanced Equipment

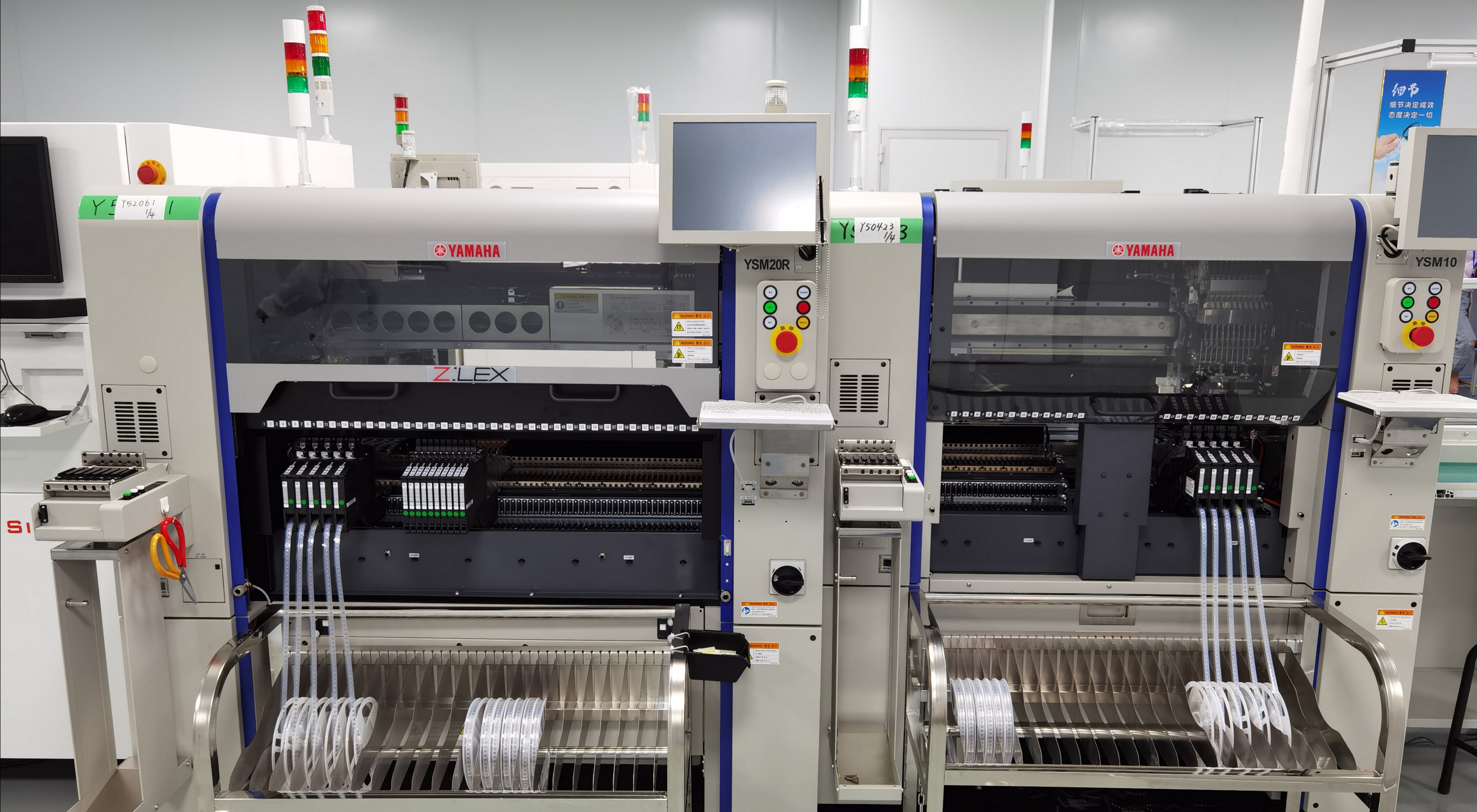

LTPCBA is a leader in modern turnkey pcba. The company uses new machines and technology for fast, high-quality work. Their big factory in Shenzhen uses automation, AI, and robotics. These tools make pcb assembly faster and lower mistakes. LTPCBA has SMT lines, BGA assembly machines, and rigid flex pcb assembly systems. These machines work with hard parts and help with both small and big orders.

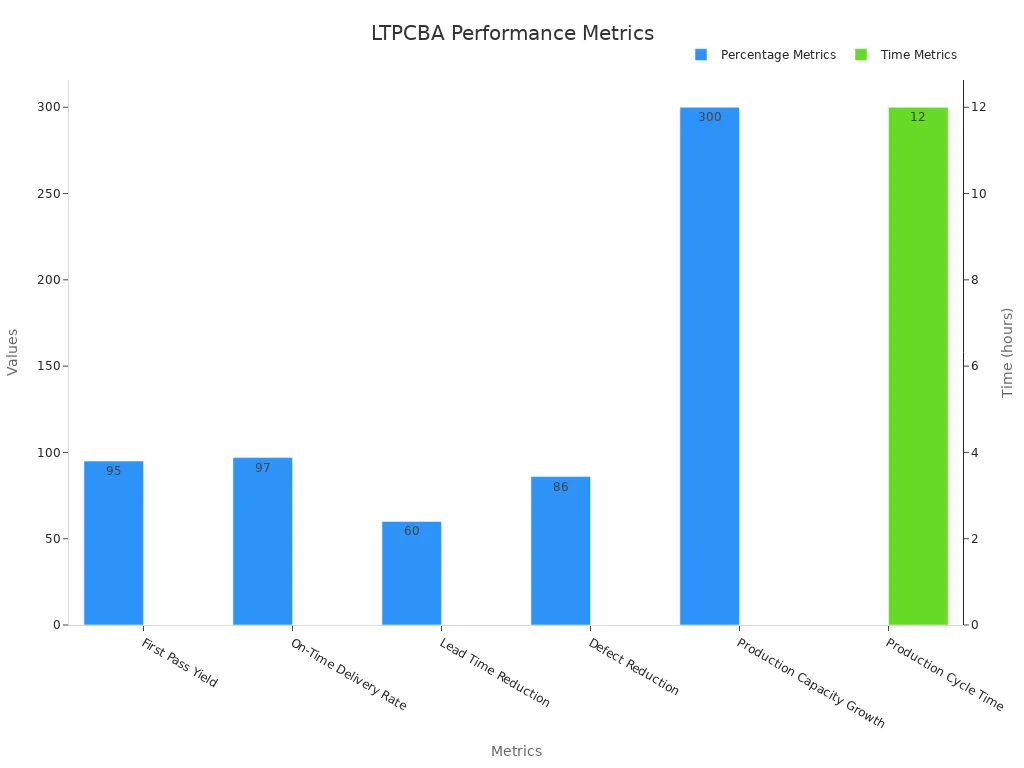

LTPCBA’s advanced equipment gives many benefits:
Production cycle time is only 12 hours.
First pass yield is 95%.
On-time delivery rate is 97%.
Lead time is 60% shorter.
Defect rates drop by 86%.
Production capacity grows by 300%.
The company also uses AOI and X-ray checks for every pcb. Robots put parts in the right place. These steps make sure each pcb assembly meets strict quality rules. LTPCBA follows ISO 9001:2015 and ISO 13485:2016 rules. This keeps quality high for every order.
LTPCBA’s turnkey pcba helps customers in many ways. Companies do not need to buy costly machines or hire more workers. LTPCBA does everything, from design to final tests. This lets customers focus on new ideas and growing their business. For example, a medical device company worked with LTPCBA to meet a tight deadline. LTPCBA’s fast machines and quick work helped them launch on time and avoid delays.
Tip: Picking a turnkey provider like LTPCBA means faster work, fewer mistakes, and better quality for every pcb assembly project.
Quality Control Systems
LTPCBA’s Quality Assurance
Quality control systems help make sure every pcba is good. LTPCBA checks quality at every step. The company has certifications like ISO 9001, IATF 16949, and UL. These show LTPCBA follows world rules for safety and quality. LTPCBA tracks each pcb and part with quality management systems. This stops mistakes and keeps products working well.
LTPCBA uses many ways to keep defects low and quality high. The team uses AOI to check each pcb for problems. AOI finds missing or wrong parts. X-ray inspection looks inside BGA and QFN to find hidden solder issues. Solder paste printing inspection checks if the right amount of solder is used. FAI checks the first board in a batch to make sure the process works.
LTPCBA uses statistical process control to watch for changes. This helps the team fix small problems before they get big.
The company also uses in-circuit and functional testing to check if each pcba works. These tests find faults early and help keep the pass rate high. LTPCBA checks every supplier and uses lot traceability to track parts. This keeps pcb quality the same, even if supply chains change.
Here are some ways LTPCBA’s quality control helps:
AOI finds errors and soldering problems right away.
X-ray inspection finds hidden faults in hard packages.
In-circuit and functional testing catch problems early.
Statistical process control keeps things steady and lowers defects.
Lot traceability makes sure every part meets strict rules.
LTPCBA’s quality system uses real-time data tracking. AOI systems take pictures and collect data for each pcb. The company saves this data in a database. Engineers use the data to spot trends and fix problems fast. Real-time feedback helps the team change the process and keep quality high. This way, costs go down and product quality goes up for every customer.
Testing and Certifications
LTPCBA is a certified pcba factory because of strong testing and certifications. The company uses many tests to check every pcb and pcba. These include AOI, X-ray inspection, in-circuit testing, functional testing, burn-in testing, and aging tests. Each test looks for different faults and helps make sure the product is safe and works well.
Certification | Significance |
|---|---|
ISO 9001 | Makes sure quality stays the same and customers are happy |
IATF 16949 | Meets car industry quality rules |
UL Certification | Shows the product is safe and works for important jobs |
LTPCBA uses advanced machines for testing. Automated solder paste printers with SPI, 10-zone reflow ovens, and SMT X-ray inspection systems help lower defects. The company follows strict rules and uses statistical process control to keep quality high. These steps help LTPCBA reach a 99.5% pass rate and keep customers happy.
The company’s testing checks every step:
Solder paste printing inspection checks solder amount and placement.
AOI finds surface problems and polarity mistakes.
X-ray inspection looks for hidden solder faults.
In-circuit testing checks electrical connections.
Functional testing makes sure the pcba works right.
Burn-in and aging tests find early failures.
LTPCBA’s certifications, like ISO, IATF, and UL, show the company cares about quality. These certifications help customers trust each pcb and pcba meets strict rules. LTPCBA also follows RoHS and CE rules for safety and the environment. The company’s quality control and testing make it a trusted pcba maker for many industries.
Note: LTPCBA uses real-time tools to track inspection results. These tools help engineers act fast and keep the process under control.
LTPCBA always tries to get better at pcb quality management. The team looks at feedback, checks returns, and uses failure modeling to improve each batch. This focus on quality, testing, and certifications helps LTPCBA give high-quality pcba products every time.
LTPCBA uses advanced machines and good quality checks. This helps them make strong pcba and pcb products. Their turnkey process puts parts in the right place. They test each product twice and use trusted materials. LTPCBA is a leader because they follow world quality rules. Customers can count on LTPCBA for good service and reliable products.
LTPCBA works with hard parts using careful alignment and heat.
Quality checks begin early and happen at every step.
The company follows strict world rules for pcb assembly.
FAQ
What does turnkey PCBA mean?
Turnkey PCBA is when one company does all the work. They design the boards, get the parts, put them together, and test them. This helps customers get their finished boards faster and with fewer mistakes.
How does LTPCBA ensure product quality?
LTPCBA uses smart machines and careful tests. AOI and X-ray checks help find problems early. Real-time data tracking also helps spot issues fast. The company follows ISO, IATF, and UL rules to keep quality high.
Tip: LTPCBA has a 99.5% pass rate, which means their quality control is very strong.
Who can use LTPCBA’s services?
Engineers, students, and companies from many fields can use LTPCBA. The company helps with both small and big orders. Customers get quick price quotes and can ask for help any time, day or night.
