Understanding the Pros and Cons of SMD and Through-Hole Technology

• Surface Mount Technology (SMT) and Through-Hole Technology (THT) are two methods for attaching parts to circuit boards, often discussed in the context of smd vs through hole.

• SMT places components directly on the board's surface, resulting in smaller and lighter designs.

• In contrast, THT utilizes holes in the board to secure components, providing enhanced strength.

Understanding the advantages and disadvantages of smd vs through hole technologies can significantly improve the performance of electronics.

• SMT is particularly effective with high-speed machines, facilitating quicker and more efficient production.

• On the other hand, THT is preferable for applications requiring durability and high power, as it tends to have a longer lifespan.

• The choice between SMT and THT influences the flexibility of your design, the manufacturing process, and overall functionality.

Key Takeaways

• Surface Mount Technology (SMT) makes electronics smaller and lighter. This works well for gadgets like smartphones and smartwatches.

• SMT uses machines to build devices faster, saving time and money. It lowers labor costs for making many products.

• Through-Hole Technology (THT) creates strong connections. This is great for tough jobs like in airplanes or factories.

• THT is easier to use for testing and building ideas. Its bigger size helps make quick changes during design.

• Picking SMT or THT depends on what your project needs. Think about size, strength, cost, and how fast it must be made.

Advantages of Surface Mount Technology

Small Size and Lightweight Design

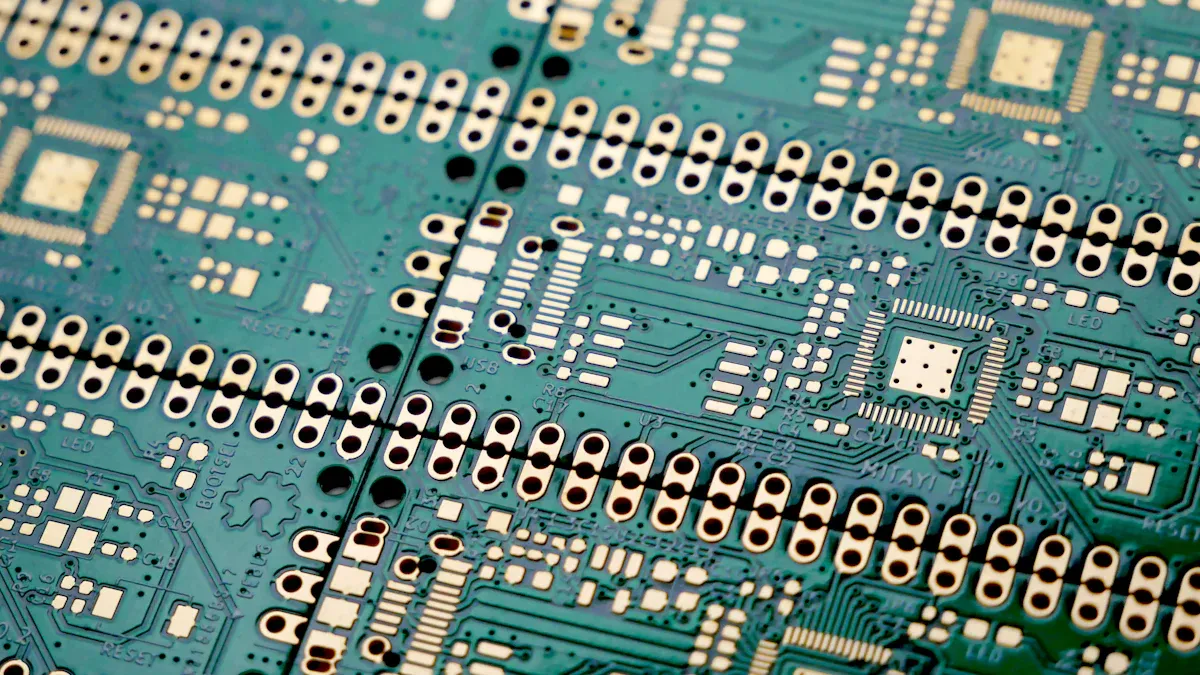

Surface Mount Technology (SMT) helps make electronics smaller and lighter. Unlike Through-Hole Technology, SMT puts parts directly on the circuit board's surface. This means no holes are needed, so more parts can fit on the board. This allows for smaller devices that still work well.

For example, smartphones and smartwatches use SMT to stay slim and light. Fitting more parts in less space also helps create new and creative designs.

SMT makes electronics smaller and lighter by using tiny parts and higher density.

Fast Assembly with Automation

SMT works well with fast machines for quick assembly. Automated SMT systems place parts on boards quickly, making it great for mass production. This saves time and keeps quality consistent for large batches.

Here’s some data showing SMT’s impact:

These numbers show how important SMT is in electronics today. Using SMT can speed up production and handle large orders easily.

Fast SMT machines help make complex electronics quickly and efficiently.

Saves Money in Assembly

SMT helps save money during production. Since no holes are needed, making the boards costs less. Automated SMT also reduces labor costs. Plus, SMT parts are smaller and usually cheaper than through-hole parts.

Here’s a simple look at the savings:

Choosing SMT can cut costs while keeping good quality. It’s a smart choice for both small and big projects.

SMT lowers costs by skipping drilling and speeding up production.

Better Performance in High-Frequency Circuits

Surface mount technology works well for high-frequency electronics. It is often chosen for modern devices needing fast and accurate signals. SMT parts are small and have short leads. This helps reduce unwanted electrical effects like inductance and capacitance. As a result, signals stay strong and circuits work better.

High-frequency circuits need accuracy. Small changes can weaken signal quality.

Manufacturers use special methods to meet strict requirements:

• Laser imaging and plasma etching make precise circuit paths.

• Testing tools like TDR and VNA check if impedance is correct.

These techniques ensure SMT designs work reliably, even in tough conditions. Tests at Giga Test Labs show SMT performs well in microwave circuits over 10GHz. For example, a 20-pin SSOP Test Socket matched the PCB design perfectly. This reduced impedance problems and improved signal flow.

Another key point is how test sockets affect signals. Good RF test sockets don’t interfere with results. They are made to have low inductance and capacitance. If leads have high inductance, signals can weaken. Careful design is important for high-frequency systems.

Using SMT helps keep signals clear and circuits fast. Its precision and advanced manufacturing make it essential for today’s electronics.

Disadvantages of Surface Mount Technology

Weak Mechanical Strength

SMT parts are not very strong for tough conditions. These parts sit on the board's surface, not through it. This makes them easier to damage from stress or vibrations. Problems like broken connections or short circuits can happen. For example:

• Strong impacts can break internal connections.

• Vibrations might cause open circuits or leaks in SMT inductors.

If your design needs to handle rough use, this could be a problem.

Hard to Assemble and Prototype by Hand

Working with SMT parts by hand is difficult. Their small size makes them tricky to handle without special tools. Taking them off the board is also hard and can damage them. Cleaning leftover solder is tough, making reuse harder. Studies show less than 15% of SMT parts are reused. Removing parts with tools like solder baths takes time and costs more. For small projects or prototypes, these issues can slow you down and cost extra money.

Not Good for High-Power Systems

SMT is not great for high-power systems. Small SMT parts can’t handle high currents or voltages well. They might overheat or fail, which can make your design unsafe. Through-hole parts are better for high-power systems because they are bigger and stronger. If your project needs to handle a lot of power, SMT may not work.

SMT has many benefits, but it’s not perfect for every job. Think about your project’s needs before choosing the right technology.

Advantages of Through-Hole Technology

Strong Mechanical Bond

Through-hole technology creates a tough connection between parts and the PCB. The leads go through holes in the board and are soldered underneath. This makes the bond strong enough to handle stress, shaking, and harsh conditions.

This is useful for things like factory machines or airplanes. These systems face constant movement and vibrations. Through-hole parts stay firmly attached, keeping the device working well over time.

If your design needs to last long and be reliable, through-hole technology is a smart choice. Its strength makes it perfect for projects needing durability.

Tip: Choose through-hole parts for devices used in rough or extreme conditions.

Great for Prototyping and Testing

Through-hole technology makes testing and prototyping easier. The bigger size of these parts helps when building or fixing a PCB by hand. You can quickly add or remove parts during design changes.

For example, if you're making a test circuit, through-hole parts let you try different setups easily. They are simple to see and replace, making problem-solving faster. This saves time during development.

This feature is helpful for students, hobbyists, and engineers working on new ideas. Through-hole technology supports hands-on learning and experimenting, making it a favorite for prototypes.

Works Well in High-Power and High-Voltage Systems

Through-hole technology is great for handling high power and voltage. Its larger parts can manage strong currents and voltages without overheating or breaking. This makes it reliable for power supplies and amplifiers.

For instance, audio amplifiers need parts that handle big electrical loads. Through-hole components provide the needed stability and capacity for smooth performance. Industrial equipment with high-voltage circuits also benefits from the safety and reliability of through-hole parts.

If your project needs to handle lots of power or voltage, through-hole technology is the right choice. It’s built to work well under tough electrical conditions.

Note: Through-hole technology has many benefits but isn’t ideal for every project. Think about your needs, costs, and manufacturing limits before deciding.

Disadvantages of Through-Hole Technology

Bigger Size and Heavier Weight

Through-hole parts are bigger and heavier than SMT parts. This makes the circuit board larger and adds weight. For modern gadgets, being small and light is important.

Here’s a size and weight comparison:

Devices like phones and smartwatches need tiny, light parts. Through-hole parts are too bulky for these designs. If your project needs a small board, through-hole may not work.

Slower to Assemble

Through-hole assembly takes more time than SMT. Parts with wires must go into drilled holes on the board. This step needs care and often uses manual work. After placing parts, soldering secures them. Some parts even need hand soldering for accuracy.

Why it’s slower:

• Placing parts into holes takes time.

• Soldering by hand or machine adds steps.

• Bigger parts take up more space, limiting design options.

These steps slow production and raise labor costs. Through-hole is not ideal for making large amounts quickly.

Costs More for Big Projects

Through-hole costs more for mass production. Drilling holes and soldering parts takes time and effort. Even though through-hole parts may cost less upfront, assembly costs are higher. SMT is faster and fits more parts on a board, saving money.

Here’s a cost breakdown:

For large-scale production, SMT is cheaper and faster. Through-hole works better for projects needing strength over cost savings.

Through-hole technology has strengths but also drawbacks. Its size, slow assembly, and higher costs make it less useful for modern mass production.

Practical Uses of SMD vs Through-Hole Parts

Where Surface Mount Technology is Used

Surface Mount Technology (SMT) is common in modern gadgets. It helps make devices small and light. Phones, tablets, and smartwatches use SMT to fit many parts in tiny spaces. TVs and gaming systems also use SMT for fast circuits.

SMT is great for making lots of devices quickly. Machines can place and solder SMT parts fast. This makes it perfect for industries needing quick assembly. If your project needs small parts and fast production, SMT is a smart choice.

Where Through-Hole Technology is Used

Through-Hole Technology (THT) works well for strong and reliable designs. It is used in aerospace, factories, and renewable energy projects. For example, airplanes use THT for flight systems because it’s tough. Factory machines and power units also use THT to handle rough conditions.

Here’s how THT is used in different industries:

THT is best for high-power systems. Its parts handle strong currents and voltages safely.

Mixing SMD and Through-Hole Parts

Some designs use both SMT and THT parts together. This mix combines the best features of both technologies. SMT is used for small, fast circuits. THT is added for parts needing strength or heat control.

Cars often use both SMT and THT parts. SMT saves space, while THT adds durability. Factory machines also mix these parts for better performance. Combining SMT and THT lets you create designs that are strong and efficient.

Cost and Assembly Process Comparison

Cost Differences Between SMD and Through-Hole Components

When looking at SMT and THT, costs vary a lot. SMT is cheaper because its parts are smaller and assembly is faster. Machines used for SMT work quickly, saving time and labor costs. Also, SMT doesn’t need holes drilled in the board, which lowers expenses.

On the other hand, THT parts are stronger and more reliable for certain uses. But assembling THT parts by hand costs more. Drilling holes and using wave soldering adds to the price. Even with higher costs, the THT market was worth USD 36.14 billion in 2022 and grows by 6.3% each year.

Tip: Use SMT for cheap, fast production. Pick THT for strong, durable designs.

Assembly Methods: Machines vs. Manual Work

SMT uses machines to place parts, making it fast and precise. Reflow soldering, a common SMT method, uses heat to attach parts. This works well for small, compact designs. However, SMT boards need careful planning to stay flat and accurate.

THT, however, often needs manual soldering. Wave soldering is used for many parts, but selective soldering is needed for delicate ones. Manual work makes THT slower and less efficient for big projects. Still, it’s great for testing and custom designs.

Repair and Maintenance

Fixing SMT parts is harder because they’re small and packed tightly. Heat during soldering can weaken connections, making repairs tricky. THT parts, however, are bigger and easier to fix. Their leads are accessible, which helps with testing and repairs.

For projects needing frequent changes, THT is better. But for small, fast designs, SMT is the best choice.

Knowing the good and bad of SMT and THT helps you decide. SMT makes smaller, cheaper, and faster-to-build devices. THT is stronger and works better for high-power systems.

Pick the right one for your project. Use THT for testing or high-power needs. Choose SMT for small gadgets or making many items quickly. Think about cost, performance, and design to make your PCB work well.

FAQ

What’s the key difference between SMT and THT?

SMT puts parts on the board’s surface. THT uses drilled holes to secure parts. SMT is great for small designs. THT is better for strong connections. Pick based on size or strength needs.

Can SMT and THT parts be used together?

Yes, you can mix SMT and THT parts. SMT saves space, while THT adds strength or handles high power. Many industries combine both for better performance and durability.

Why is SMT good for making lots of products?

SMT uses machines to place parts quickly and accurately. This lowers labor costs and speeds up production. It’s the best choice for making many electronics fast.

When should THT be chosen instead of SMT?

Use THT for strong, durable designs or high-power systems. THT parts handle stress and vibrations well. They’re also easier to test and fix, making them great for tough jobs.

How does choosing SMT or THT affect costs?

SMT is cheaper because it skips drilling and uses machines. THT costs more due to manual work and drilling. Think about your budget and project size when deciding.
