Smart Ways to Cut Costs in Custom PCBA Assembly Projects
You can achieve cost reduction in pcba assembly custom projects by applying smart tips during the design phase, selecting the right materials, and optimizing your approach. When you focus on strategies that enhance pcba assembly custom processes, you can save costs without sacrificing quality. Start making small changes in your pcba assembly custom workflow for big results.
Key Takeaways
Simplify your PCB layout to reduce complexity. Fewer layers and straightforward routing lower material costs and speed up production.
Choose standard components over custom ones. Standard parts are often cheaper, easier to source, and help avoid delays.
Plan larger order volumes to lower per-unit costs. Higher quantities spread setup costs, leading to significant savings.
Cost Drivers in PCBA Assembly
Board Complexity
You will notice that the complexity of your board design has a big impact on manufacturing costs. Simple boards with fewer layers and straightforward routing are easier and cheaper to produce. When you add more layers, dense component placement, or intricate traces, the pcb assembly process becomes more challenging. This leads to higher costs. If you want to focus on reducing pcb assembly costs, start by evaluating your board’s structure. Choose a design that meets your needs without unnecessary complexity.
Component Choices
Component selection plays a major role in the total cost of your pcba assembly custom project. Some components are much more expensive than others. You can manage costs by choosing standard parts and sourcing them from reliable suppliers. Here are the main factors that drive up component costs:
Advanced or rare components often cost more and may require special handling.
The type of PCB material matters. FR-4 is a common, cost-effective choice, while specialty materials can increase costs.
Tip: Always check if a less expensive, standard component can do the job before selecting a high-end part.
Order Volume
Order volume affects your pricing more than you might expect. When you order a higher volume of boards, you spread setup and tooling costs over more units. This lowers the per-unit cost. Small runs or prototypes usually have higher costs per board because the setup time remains the same, no matter the quantity. If you plan your pcb assembly orders in larger batches, you will see significant savings. Volume also impacts supplier negotiations and lead times, which can further help in reducing costs.
Design Tips for Reducing Costs
When you want to save money on your next pcb assembly project, you need to focus on smart design tips. These tips help you create budget-friendly designs that lower manufacturing costs and keep quality high. By making small changes in your design, you can see big results in reducing pcb assembly costs.
Simplify PCB Layout
You can start by simplifying your PCB layout. A simple layout means fewer layers and less complex routing. This approach makes the pcb assembly process faster and easier. When you reduce the number of layers, you cut down on material costs and speed up production. You also lower the chance of errors during assembly.
Simplifying the layout minimizes complexity, which leads to fewer fabrication steps.
Reducing the number of layers lowers material costs and speeds up the manufacturing process.
Optimizing component placement can result in faster assembly times.
For example, a customer making smart thermostats achieved a 30% total cost savings by using these design tips. They replaced three specialty components with standard alternatives and reduced their BOM costs by 22%. Their lead time dropped from six weeks to just two weeks. You can see how a simple layout and strategic component selection make a big difference.
Minimize Vias
Vias are small holes that connect different layers of your PCB. Each via adds to the cost and complexity of your board. When you minimize the number and type of vias, you help reduce manufacturing costs. Try to avoid unnecessary vias and use standard types whenever possible.
Optimize the number of layers in the PCB to reduce costs.
Manage the type and count of vias to avoid unnecessary expenses.
Design PCBs to fit standard sizes and shapes to minimize costs.
By keeping your design straightforward and limiting the use of stacked or blind vias, you make the pcb assembly process more efficient. This step also helps you avoid extra processing steps that can slow down production.
Design for Manufacturability
Design for manufacturability (DFM) means you create your board so it is easy to produce. This approach helps you avoid costly mistakes and delays. You should always consider material optimization and strategic component selection during the design phase. LTPCBA uses advanced technology and DFM expertise to help you achieve efficient production.
Here are some best practices for DFM:
Best Practice | Description |
|---|---|
Material Selection | Choose lower-cost materials based on functionality; for example, use FR4 for <1 GHz applications. |
Board Size Optimization | Optimize layout to reduce board size; use SMD components to save space. |
Trace and Space Considerations | Maintain traces and spaces greater than 4.25 mils to avoid increased costs. |
Process Simplifications | Reduce processing steps by avoiding stacked vias and preferring resin-filled vias. |
Component Cost Reduction | Analyze component choices to avoid unnecessary high-precision components and redundancies. |
When you follow these design tips, you make your pcb assembly custom project more cost-effective. You also improve quality and reliability. LTPCBA’s team can guide you through every step, using their experience in DFM and advanced manufacturing systems. This support ensures you get the best results while reducing costs.
Tip: Always review your BOM and consider standard components first. This step helps you avoid delays and keeps your project on track.
By focusing on these design tips, you can create budget-friendly designs, save money, and achieve your project goals.
Cost-Effective Materials and Components
Choosing the right materials and components helps you control the cost of your pcb assembly project. You can make smart decisions that lead to a cost-efficient and reliable product. LTPCBA supports you with strong sourcing capabilities and strict quality assurance, so you get the best value every time.
Standard Components
You can save money by selecting standard components for your pcb assembly. Standard parts are easy to source and often cost less than custom or rare alternatives. Suppliers keep these components in stock, which means you avoid long lead times and unexpected delays. You also reduce the risk of compatibility issues.
Standard resistors, capacitors, and connectors fit most designs.
You can replace specialty parts with standard equivalents to lower costs.
LTPCBA helps you find reliable sources for standard components.
Tip: Always check if a standard component meets your needs before choosing a custom part. This step keeps your project on schedule and within budget.
Cost-Effective Materials
You need to choose cost-effective materials for your pcb assembly. Material selection affects both performance and price. FR-4 is a popular choice because it offers good quality at a reasonable cost. You should match the material to your application, so you do not overspend.
Material Type | Typical Use Cases | Cost Efficiency | Availability |
|---|---|---|---|
FR-4 | Consumer electronics, IoT devices | High | Widely available |
CEM-1 | Simple circuits, low-frequency boards | Very high | Common |
Polyimide | Flexible PCBs, high-temperature use | Moderate | Available |
LTPCBA sources cost-effective materials from trusted suppliers. You get consistent quality and reliable performance. The company’s quality assurance process checks every batch, so you receive materials that meet international standards.
Avoid Over-Specification
You can keep your pcb assembly cost-efficient by avoiding over-specification. Over-specification happens when you choose components or materials that exceed your actual needs. This mistake increases costs without adding real value.
Select components with ratings that match your requirements.
Do not use high-frequency materials for low-frequency applications.
Avoid adding extra features that do not improve performance.
LTPCBA reviews your design and helps you match specifications to your project goals. You get expert advice that keeps your pcba assembly custom project cost-effective and reliable.
Note: Careful specification helps you avoid waste and ensures you get the best results for your budget.
You can achieve cost-effective pcb assembly by using standard components, choosing cost-effective materials, and avoiding over-specification. LTPCBA’s sourcing expertise and quality assurance give you confidence in every step of your project.
Prototyping and Testing
Prototyping and testing play a key role in making your pcba assembly custom project successful. You can use these steps to catch problems early and save money before moving to full production.
Rapid Prototyping
Rapid prototyping lets you turn your design into a working board quickly. You can test ideas and spot issues before you commit to large-scale pcb assembly. This process helps you avoid expensive mistakes and keeps your project on track.
Here are some main benefits of rapid prototyping:
Benefit | Description |
|---|---|
Quick turnaround | You can reduce fabrication time from weeks to hours. This speeds up your design process. |
Accurate results | You get a real board for testing, which helps you optimize layouts. |
Modification flexibility | You can make changes fast based on test feedback. |
Small volumes | You only produce what you need, so you avoid extra cost. |
Customer satisfaction | You can test and observe your design in real time, leading to better products. |
Cost reduction | You find issues early, which lowers your total manufacturing and design cost. |
Tip: Use rapid prototyping to test your design before starting mass production. This step can save you time and money.
Iterative Testing
Iterative testing means you test your board, make improvements, and test again. You repeat this cycle until your product meets your goals. This method helps you build better products and avoid costly errors.
The table below shows how iterative testing helps your project:
Benefit | Description |
|---|---|
Faster Innovation | You can try new ideas and add new features quickly. |
Improved Product Quality | |
Reduced Time and Costs | You cut down on rework and shorten development time, which saves cost. |
Risk Mitigation | You catch design issues early and avoid expensive mistakes in production. |
Market Responsiveness | You can respond to customer needs and market changes faster. |
You can use iterative testing to improve your pcb assembly and deliver reliable products. This approach helps you meet customer needs and stay ahead in the market.
Supplier Collaboration for Cost-Effective PCB Assembly
Working closely with your supplier can make a big difference in your pcba assembly custom project. You gain more than just lower prices. You also improve quality, speed, and reliability. LTPCBA stands out with quick responses, 24-hour support, and a focus on building long-term partnerships.
Clear Documentation
Clear documentation helps you avoid mistakes and keeps your pcb assembly process smooth. You do not have to rely on tribal knowledge, which can lead to errors. Good documentation ensures everyone follows the same steps. This reduces the chance of quality issues. When problems come up, you can find the cause faster and fix it quickly. You save both time and cost.
Clear instructions reduce errors and inconsistencies.
Everyone follows the same process, which improves quality.
Troubleshooting becomes easier and faster.
Negotiation
You can use smart strategies to get better pricing from your supplier. The table below shows some effective negotiation methods:
Strategy | Description |
|---|---|
Address unreasonable quotations | Tell the supplier if the price does not match your product specifications. |
Allow time for consideration | Give the supplier time to think about price changes. |
Build confidence with future orders | Promise larger future orders to encourage better deals. |
Share development costs | Add development costs to the final payment. |
Mold cost return plan | Suggest returning mold costs after reaching a set order quantity. |
Setup cost responsibility | Offer to cover setup costs for small orders. |
These strategies help you reach fair agreements and keep your project on budget.
Building Relationships
Long-term relationships with your supplier bring many benefits. You gain stronger negotiation power, which can lower your costs. Working together over time also improves the quality of the parts you receive. LTPCBA values long-term partnerships and supports you with fast communication and reliable service. You can expect:
Faster turnaround and shorter lead times
Better collaboration and communication
Stable supply chain and risk reduction
Support for advanced customization and innovation
When you build trust with your supplier, your pcb assembly projects become more successful.
Technology and Automation in Reducing PCB Assembly Costs
Automated Assembly

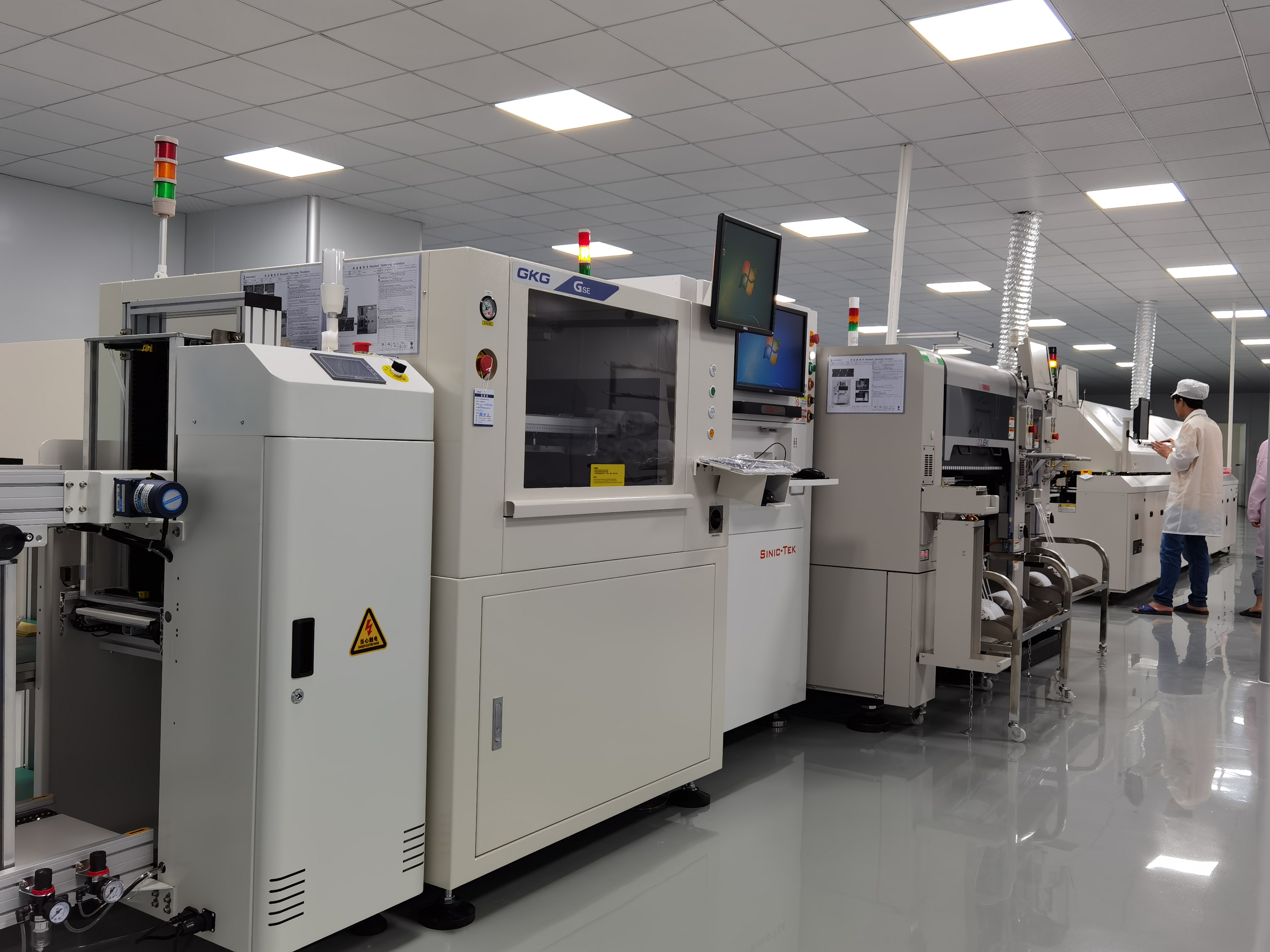

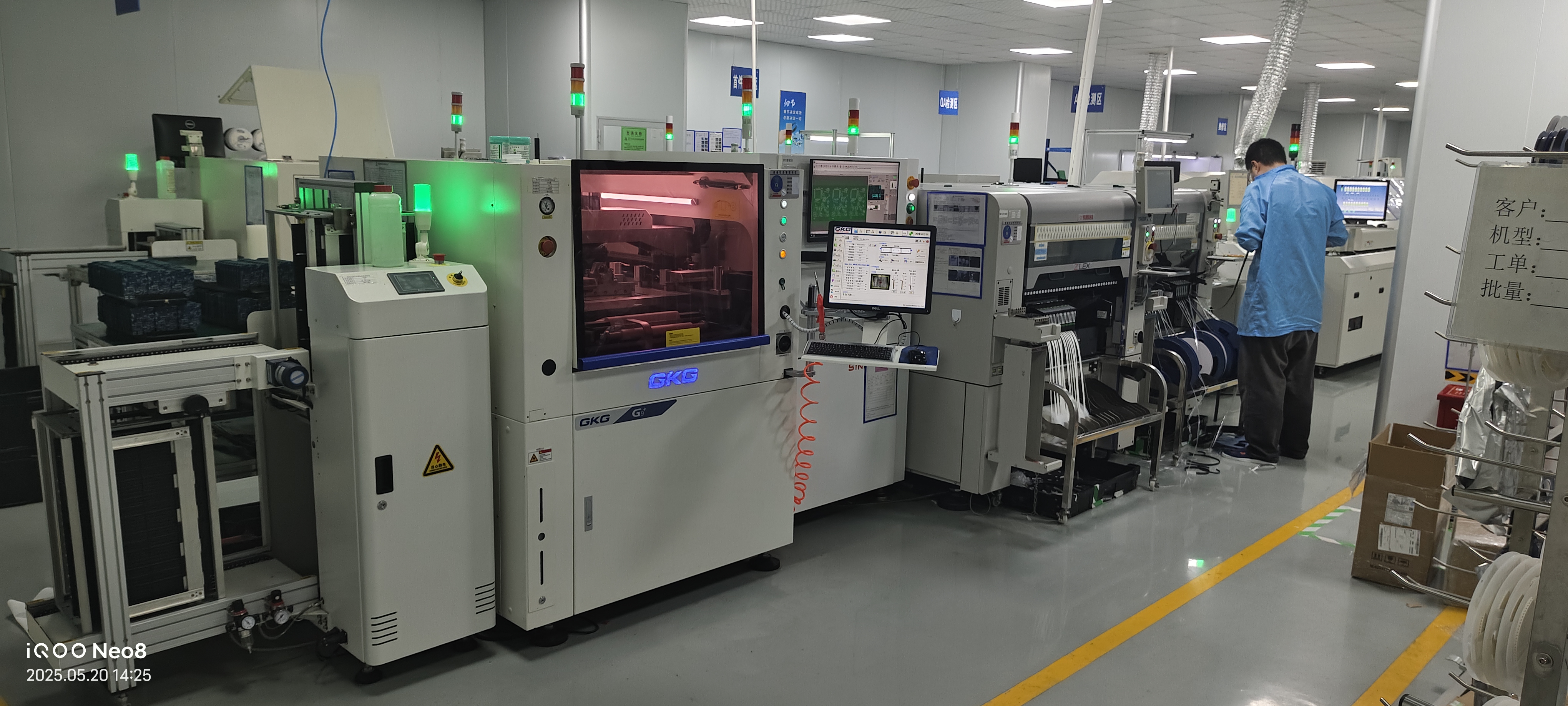

You can lower your production cost by using automated assembly in your pcba assembly custom projects. Automated machines place components quickly and accurately. This reduces errors and speeds up the pcb assembly process. You get consistent quality because machines follow exact instructions every time. LTPCBA uses advanced automated systems and Automated Optical Inspection (AOI) to check each board for defects. AOI scans every detail and catches problems early. You save money because you avoid rework and scrap. Automated assembly also helps you meet tight deadlines and deliver products on time.
Tip: Automated assembly works best when your design follows standard guidelines. You should keep layouts simple and use standard components.
Design Software Tools
You can use design software tools to optimize your pcb assembly and reduce cost. These tools help you create better layouts, check for errors, and simulate how your board will work. You can spot problems before production starts. This saves you time and money. The table below shows some popular design software tools and their features:
Software Tool | Features |
|---|---|
Altium Designer | Powerful layout and schematic capture, advanced simulation, 3D modeling. |
Eagle | User-friendly, extensive libraries, integrates with Autodesk products. |
KiCad | Open-source, professional-grade features, highly customizable. |
OrCAD | Robust simulation capabilities, preferred for extensive analysis. |
You can choose the tool that fits your needs and budget. LTPCBA’s team uses advanced design software to help you create efficient boards. You get expert support at every step, from design to final assembly.
Review your pcba assembly custom process for savings.
Use smart design, standard materials, and supplier teamwork.
Focus on quality while lowering cost.
Start today. Check your current steps and see how LTPCBA can help you build better boards for less.
FAQ
What is the fastest way to reduce PCBA assembly costs?
Focus on design simplification. Use standard components and minimize board complexity. These steps give you immediate savings.
How does LTPCBA ensure quality while keeping costs low?
LTPCBA uses automated inspection, strict quality checks, and reliable sourcing. You get high-quality boards at competitive prices.
Can you use your own components for assembly at LTPCBA?
Yes, you can supply your own parts. LTPCBA will assemble your boards using your components.
Tip: Provide clear documentation for best results.
