Analyzing the Main Reasons for Poor Reflow Soldering in SMT Processing

Reflow soldering quality is critical to the performance of electronic assemblies and can be affected by various factors such as PCB pad design, solder paste, component quality, process parameters, equipment accuracy, and environmental conditions. High reflow soldering quality ensures reliable and efficient operation of electronic products. Studies indicate that soldering defects significantly increase costs and lead to product failures. At LTPCBA, we utilize advanced surface mount technology and optimized thermal profiles to achieve superior reflow soldering quality in our SMT processes.

Key Takeaways

• Good reflow soldering needs the right PCB pad design. It also needs good solder paste. You must control temperature and timing carefully.

• Soldering problems like solder bridging and tombstoning can happen. Cold joints, solder balls, and voids are also common. You can stop these by using the right materials. Keeping equipment in good shape helps too. Using the best heat settings is important.

• Checking with AOI and X-ray machines is needed. Strict quality checks help a lot. Training workers often is important. This makes SMT assembly better and stops expensive mistakes.

Key Factors in Reflow Soldering Quality

PCB Pad Design

PCB pad design is very important for reflow soldering. Pads that are the same shape help keep solder balanced. This makes the solder joints strong. Pads need the right space between them to stop shorts. The pad width should be close to the lead width. If the pad is too big or small, problems can happen. These problems include non-wetting, misalignment, or voids. Good pad design helps parts line up by themselves. This makes the joints more reliable.

Solder Paste Issues

Solder paste quality matters for good soldering. The metal in the paste and how it is stored are important. Bad paste can cause solder balls or bridging. If printing is not done well, solder can overflow. This can cause non-wetting or tombstoning. Temperature and humidity also change how the paste works. LTPCBA uses Solder Paste Inspection to check the paste. They look at thickness, volume, and where the paste is placed. This helps make sure soldering is good.

Component Quality

Good components help with reflow soldering. If leads have rust or dirt, solder does not stick well. This makes the joints weak. Some parts do not handle heat well and can get defects. Placing parts in the right spot stops non-wetting and tombstoning. LTPCBA checks all parts to keep soldering quality high.

Process Parameters

Process parameters are things like temperature and time. The amount of flux also matters for soldering. Machine Capability Analysis helps control these things. LTPCBA studies data to make the process better. This keeps the soldering quality the same each time.

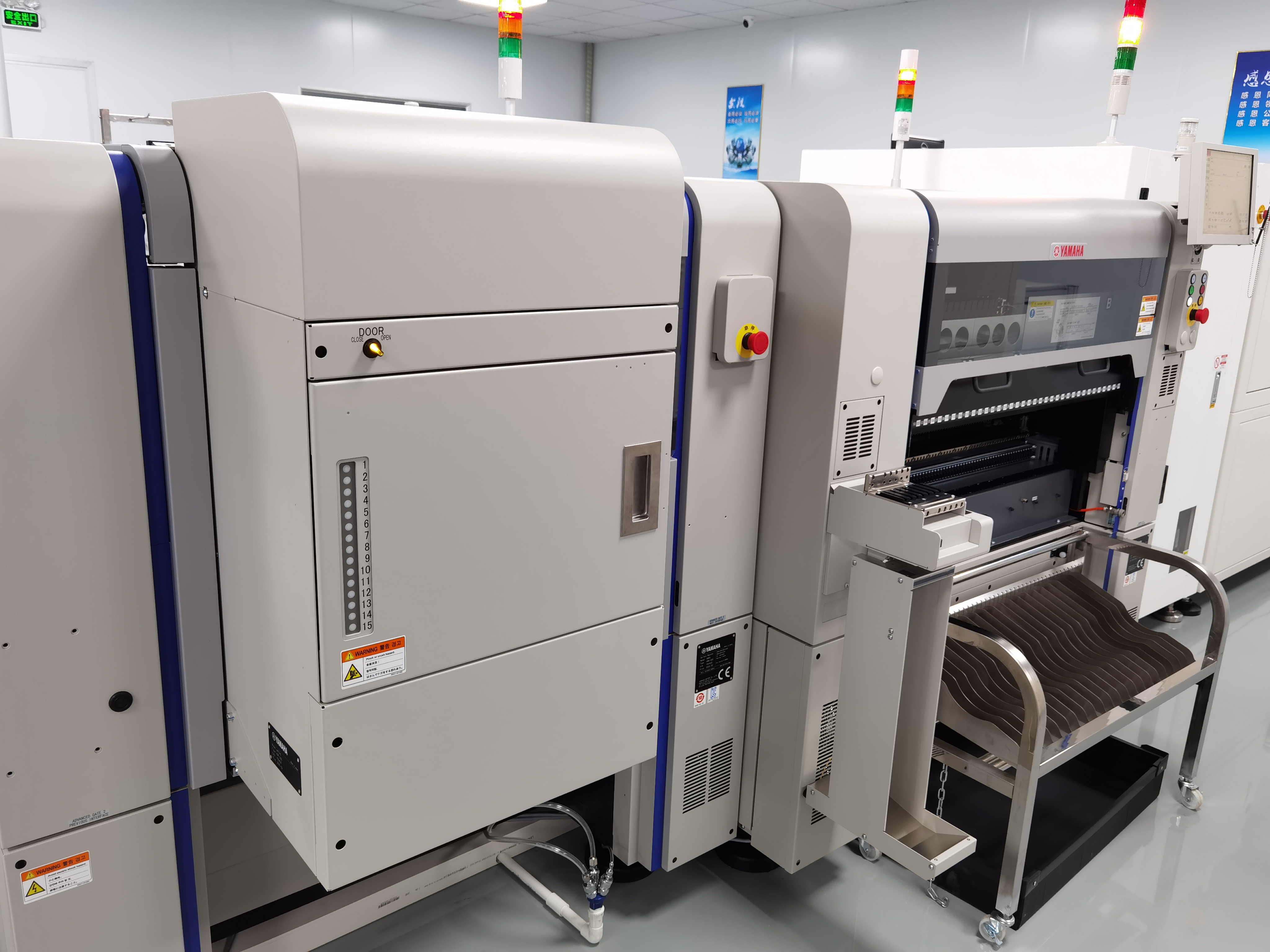

Equipment Accuracy

Accurate machines help place and heat parts right. Visual checks, microscopes, and X-rays are used to look at joints. LTPCBA follows IPC rules to keep machines working well. This helps keep soldering quality high.

Environmental Conditions

Things like temperature changes and stress can change solder joints. These things affect how strong and hard the joints are. This is important for good reflow soldering. LTPCBA controls the environment in the factory. This protects soldering quality and circuit board performance.

Common Defects in Reflow Soldering

Solder Bridging

Solder bridging is a problem that happens a lot. It happens when solder joins two pads that should not touch. This can make a short circuit and hurt the PCB. Solder bridging can happen if the solder is too runny. It can also happen if the reflow temperature is wrong or the PCB design is bad. Putting solder mask dams between pads helps stop this problem. Using the right amount of solder paste also helps. Good reflow profiles and careful part placement lower the chance of solder bridging.

Tombstoning

Tombstoning happens when one end of a small part lifts up. The part stands up straight, like a tombstone. This problem makes open circuits and can stop the assembly from working. Tombstoning does not happen as much now because of better design and controls. But it can still happen if heating is not even. Pad size differences and stress inside parts can also cause it. New machines and good thermal management help keep tombstoning low.

Cold Joints

Cold joints form when the solder does not melt all the way. These joints look dull, rough, or cracked. Cold joints can happen if there is not enough heat. Dirty surfaces or moving parts during cooling can also cause them. Cold joints make the connection weak and raise electrical resistance. Visual checks and electrical tests help find cold joints. This problem is common and can make soldering bad and circuits not work well.

Solder Balls

Solder balls are tiny balls of solder on the PCB after reflow. They can make short circuits and make the board look bad. Solder balls can form if there is too much solder paste. Fast heating or board warping during cooling can also cause them. Research shows that good reflow profiles and the right solder materials help stop solder balls. Solder balls show there are soldering problems and can make joints less reliable.

Voids

Voids are empty spots or bubbles inside solder joints. Voids make the joint weaker and hurt the electrical connection. Studies show that more thermal cycles make more voids. More voids mean more stress and higher thermal resistance. Voids can make the joint not last as long and cause not enough solder. Careful control of reflow and solder paste helps lower voids.

Table: Common Soldering Defects and Their Impact

Causes and Solutions for Soldering Quality

Design Improvements

A good design is needed for high soldering quality. Bad pad layout or wrong pad sizes can cause tombstoning or solder bridging. Using the right pad shapes and sizes helps parts line up. This lets solder flow better. Dr. Jennie S. Hwang’s research shows that knowing about solder joint microstructure helps stop problems like fatigue and tin whiskers. These studies show that careful design makes products more reliable.

Solutions for Design Improvements:

• Use pad sizes that match the component leads.

• Leave enough space between pads to stop bridging.

• Follow the rules for pad layout in the industry.

• Check designs with simulation tools to see how solder will flow.

Tip: LTPCBA uses special design reviews and simulations to find layout problems before making the boards.

Solder Paste Handling

Solder paste must be fresh and clean for good soldering. If paste is kept in hot or wet places, it can change. This can cause voids, solder balls, or weak joints. Good handling stops oxidation and keeps the paste working well during reflow.

Solutions for Solder Paste Handling:

• Store solder paste in cool, dry places.

• Use the paste before it gets too old.

• Mix the paste gently before using it.

• Clean stencils and tools after each use.

• Print solder paste with the right stencils for even coverage.

When solder paste is handled well, gases can escape during reflow. This lowers the chance of voids and other problems. LTPCBA follows strict rules for storage and handling to keep soldering quality high.

Component Inspection

Component quality matters for every solder joint. Dirty or broken parts can cause soldering problems. Checking parts early helps find these issues. Metrics like First Pass Yield (FPY) and Defects Per Million Opportunities (DPMO) show how well things are going. Automated Optical Inspection (AOI) and X-ray checks help find hard-to-see problems.

Solutions for Component Inspection:

• Check all parts before putting them on the board.

• Use AOI to look for missing or crooked parts.

• Use X-ray checks for joints you can’t see.

• Watch quality metrics to find patterns.

Note: LTPCBA uses SPI, AOI, and X-ray systems to make sure every part meets high standards.

Reflow Profile Optimization

The reflow process uses heat to melt solder and make strong joints. If the temperature curve is wrong, voids or cold joints can form. Studies show that a good reflow profile lowers voids and makes joints stronger. Modeling helps set the right oven temperatures for all parts.

Solutions for Reflow Profile Optimization:

• Set oven temperatures for the board and parts.

• Heat up slowly to avoid thermal shock.

• Keep the board at the right peak temperature long enough.

• Cool down slowly to stop cracks.

• Test and change profiles for each new product.

LTPCBA uses advanced ovens and modeling tools to set the reflow process. This helps keep soldering quality high and defects low.

Equipment Maintenance

Machines must work well to keep quality high. Dirty or old machines can cause many problems. Maintenance includes daily, weekly, monthly, and quarterly jobs. These jobs keep machines clean, set right, and running well.

Solutions for Equipment Maintenance:

1. Clean flux systems and nozzles every day.

2. Check and set machines each week.

3. Change old parts and do deep cleaning every month.

4. Check and adjust all systems every quarter.

Regular maintenance at LTPCBA stops breakdowns and keeps the reflow process steady.

Environmental Control

The factory environment changes soldering quality. Changes in temperature or humidity can cause problems. Modern factories use automation and real-time checks to control these things. Good hot air systems keep oven temperatures steady. Using green processes, like water-based cleaners and lead-free solders, also helps.

Solutions for Environmental Control:

• Watch temperature and humidity in the factory.

• Use ovens with many zones for steady heating.

• Put in sensors for real-time feedback.

• Pick eco-friendly materials and cleaners.

• Recycle solder to cut down on waste.

LTPCBA’s smart factory systems keep the environment steady. This helps keep soldering quality high and stops defects.

Table: Solutions for Common Soldering Quality Issues

Using many prevention strategies together works best. LTPCBA’s process controls and quality checks help make sure every batch is reliable.

Enhancing the Quality of SMT Processing

Quality Assurance at LTPCBA

LTPCBA has a strong system to keep SMT processing quality high. The company has certifications like ISO 9001:2015, ISO 13485:2016, IATF 16949, and IPC-A-610. These show LTPCBA follows strict rules to make good products. The team uses special inspection machines called AOI and AXI. AOI looks for missing parts, wrong spots, and solder joint problems. AXI finds hidden problems that AOI cannot see. The boards are tested to make sure they work right. Conformal coating keeps boards safe from water and dust, so they last longer. LTPCBA also gives 24/7 technical help and quick service to fix problems fast.

LTPCBA has a 99.5% pass rate and over 98% on-time delivery. This shows they control reflow soldering and SMT processing quality very well.

Continuous Improvement

LTPCBA thinks SMT processing gets better with learning and checking. The company trains all workers often. Employees learn Lean and Six Sigma to find and fix problems. Staff join quality programs and get rewards for good ideas. LTPCBA uses tools like SPC and defect checks to watch the process. These tools help the team see problems and fix them fast. Managers look at improvement projects every three months to keep things moving.

Training and good process checks help LTPCBA find new ways to keep soldering quality high. This helps surface mount technology and makes sure every product is reliable.

Getting better reflow soldering quality means watching every step. Companies that use new stencil tools and careful printing have fewer defects. Checking parts closely helps find problems early. Fixing issues after reflow costs much more money. It can be ten times more expensive to fix later.

Checklist for High Soldering Quality:

1. Pick the best stencils and solder paste.

2. Keep thermal profiles under control.

3. Check with AOI and X-ray machines.

4. Teach operators new skills often.

5. Watch the process to keep getting better.

FAQ

What usually causes solder bridging?

Solder bridging happens when there is too much solder paste. Pads that are not spaced right can also cause this problem. If the stencil is not made well, bridging can happen too.

Tip: Picking the right stencil helps stop bridging.

How does LTPCBA keep soldering quality high?

LTPCBA uses AOI and X-ray checks to find problems. The team looks at every board for mistakes. They follow world quality rules to make sure boards are good.

Why do voids show up in solder joints?

Voids happen when gas gets stuck during reflow. Bad solder paste care or wrong reflow heat can make more voids.

• Keep solder paste in the right place.

• Use the right reflow heat settings.
