Pcb fabrication and assembly

You need pcb fabrication to make the base of printed circuit boards. Pcb assembly puts parts onto these boards. Both steps are important for modern electronics. The pcb market was worth $9.1 billion in 2023. It is growing very fast.

Trusted companies like LTPCBA give you great pcb fabrication and assembly. They use advanced technology to do this.

Key Takeaways

• PCB fabrication and assembly are important steps to make strong electronic boards. These steps use careful methods and good materials like FR-4.

• New technologies like automation and AI help make better PCBs. Strict quality tests also help find problems early. This means fewer mistakes and faster delivery.

• Picking a trusted partner like LTPCBA helps your PCB meet world standards. They finish work quickly and give expert help during your project.

PCB Fabrication

PCB Fabrication Process

You begin pcb fabrication with a design. You use software to make the pcb layout. The design shows where each part and trace will be. After finishing the design, you pick the right materials for your pcb. FR-4 is used a lot because it is strong and insulates well.

The pcb fabrication process has clear steps:

1. Imaging: A photoresist layer goes on the board. Laser direct imaging (LDI) makes circuit patterns that match your design.

2. Etching: Unwanted copper is taken off the board. Only the needed traces stay.

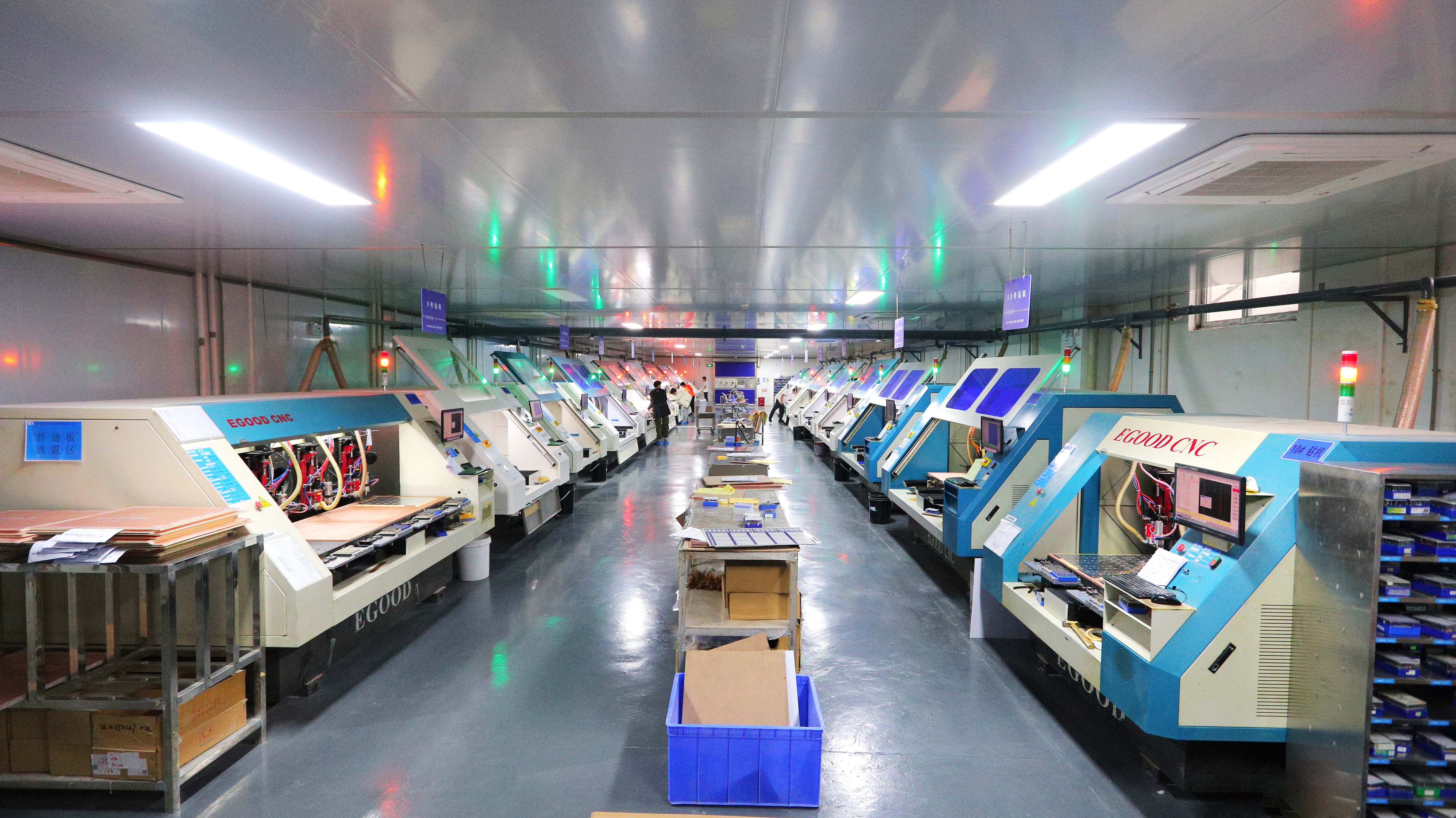

3. Drilling: Holes and vias are drilled for mounting parts. Laser drilling is very exact, good for high-frequency pcbs. Burrs are removed after drilling to keep the board clean.

4. Metallization: The drilled holes are made conductive. Electroless copper coats the hole walls and panel with a thin copper layer. This step gives strong electrical connections.

5. Copper Plating: More copper is added to holes and the surface by electroplating. This makes the board last longer and work better.

6. Photoresist Stripping: The photoresist is taken off to get ready for the next steps.

7. Solder Mask Application: A solder mask is put on to protect traces and stop solder bridges during assembly.

8. Silkscreen Printing: Labels and markings are printed on the pcb for easy reading.

9. Surface Finish: A finish like HASL or ENIG is added to protect copper and help with soldering.

10. Testing: The pcb is tested for electrical problems and defects. Automated optical inspection (AOI) and other tests find issues early.

Tip: Each pcb fabrication step uses strict controls. This helps stop defects and makes sure your pcb works right.

LTPCBA uses automation and AI-driven quality control for every pcb fabrication step. The company follows ISO, IATF, and UL standards. These rules help you get safe and reliable pcbs. LTPCBA has a 99.5% pass rate and delivers on time over 98% of the time. You can trust their pcb fabrication for both prototypes and big orders.

You might have problems during pcb fabrication, like soldering defects, missing solder masks, or board warping. LTPCBA fixes these with automated checks, careful process control, and good materials. This way, you get high-quality pcbs with fewer problems.

Materials and Technologies

You must pick the right materials for pcb fabrication. FR-4 is the most common material. It gives good insulation and strength for a low price. For special needs, you may use other materials:

New technologies help pcb fabrication. Automation lowers mistakes and makes pcb manufacturing faster. AI and machine learning find defects early. Digital twin technology lets you watch and improve production in real time. IoT systems check equipment health and track production. Using green materials helps the environment.

LTPCBA uses these new technologies for fast, reliable, and high-quality pcb fabrication. The team learns to use the newest tools and methods. This focus on new ideas helps you get the best results for your projects.

Note: When you pick LTPCBA, you get pcbs that meet strict international standards. These include ISO 9001 for quality, IATF 16949 for automotive, and UL for safety. These certifications mean your pcb fabrication meets world rules for quality, safety, and reliability.

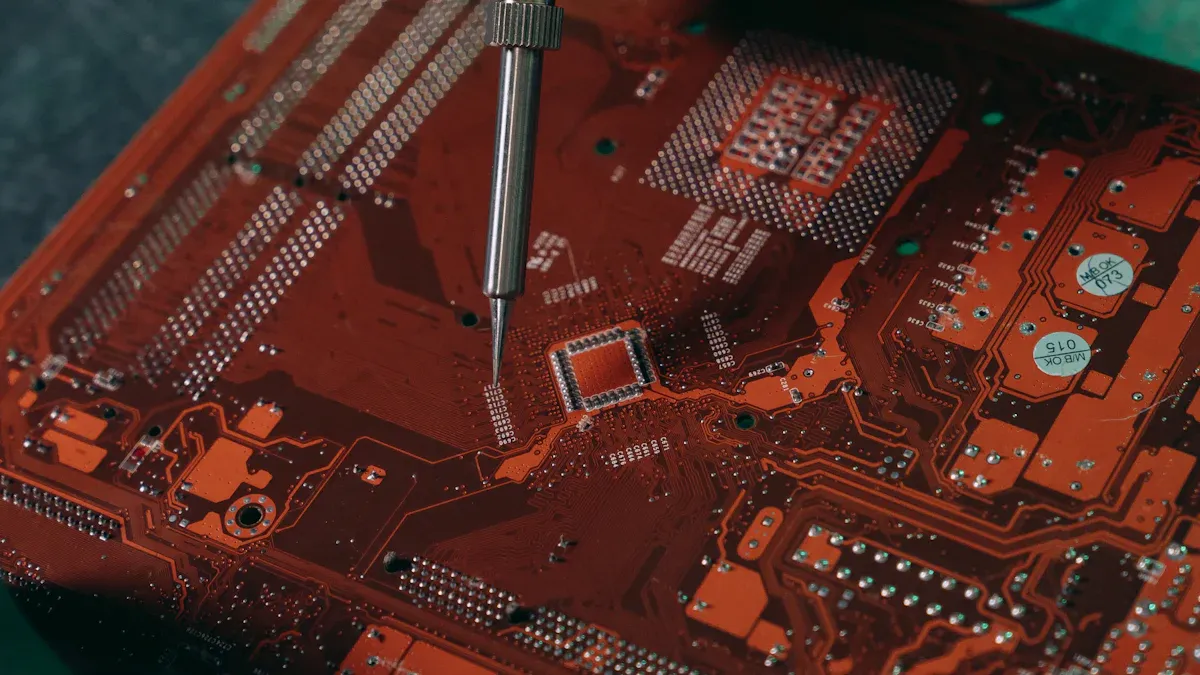

PCB Assembly

PCB Assembly Methods

You have several ways to build a pcb. The main methods are Surface Mount Technology (SMT), through-hole assembly, and mixed assembly. Each method fits different needs and products.

• Surface Mount Technology (SMT):
  SMT places components directly onto the surface of the pcb. Machines put tiny parts on pads covered with solder paste. A reflow oven heats the board, melting the paste and making strong connections. SMT works well for small, high-speed, and high-density boards. You see SMT in most modern electronics, like smartphones and computers.

• Through-Hole Assembly:
  Through-hole assembly uses components with leads that go through holes in the pcb. You or a machine insert the leads, then solder them on the other side. This method gives strong joints and works best for large parts or products that face stress, like in aerospace or power electronics. Through-hole assembly is also good for prototypes because you can replace parts easily.

• Mixed Assembly:
  Many boards use both SMT and through-hole parts. Mixed assembly starts with SMT reflow soldering. After that, you add through-hole parts and solder them, often with wave soldering or by hand. You must plan the pcb design to keep solder from flowing into the wrong places. Mixed assembly lets you use the best parts for each job.

Tip: Mixed assembly is common when you need both small, high-speed parts and large, strong parts on the same pcb. Careful planning helps avoid problems during manufacturing.

LTPCBA offers all these assembly methods. You can get SMT, through-hole, or mixed assembly for your project. The company also handles complex parts like BGA and QFN. LTPCBA provides full turn-key solutions, so you do not need to worry about buying parts or testing. The team manages everything from start to finish, making printed circuit board assembly easy for you.

Key Steps in PCB Assembly

You follow a series of steps to make a functional pcb:

1. Preparation:
   You check the pcb design and make sure it is ready for assembly. Design for Manufacturability (DFM) checks help catch problems early.

2. Solder Paste Application:
   Machines use a stencil to put solder paste on the pads where parts will go.

3. Component Placement:
   Pick-and-place machines put each part in the right spot on the pcb.

4. Soldering:
   For SMT, a reflow oven melts the solder paste and connects the parts. For through-hole, wave or selective soldering makes the joints.

5. Inspection:
   Automated Optical Inspection (AOI) and X-ray machines check for defects and hidden problems.

6. Testing:
   You test the board to make sure it works as planned.

7. Cleaning and Packaging:
   The board is cleaned to remove any leftover flux, then packed for shipping.

These steps help you get a reliable pcb that works well in your product.

Quality and Testing

You want your pcb assembly to be reliable and safe. Quality control is key at every step. LTPCBA uses advanced tools and strict standards to make sure you get the best results.

LTPCBA follows international standards like ISO9001, UL, and TS16949. These rules guide every step of the process. The company uses 36 different tests, including AOI, X-ray, and functional testing. You get a pcb that meets strict quality rules for safety and performance.

Note: Following IPC standards helps lower defect rates. IPC divides boards into three classes. Class 1 is for basic consumer products. Class 2 is for industrial and communication devices. Class 3 is for aerospace and medical devices, where you need the highest reliability. LTPCBA can build boards for all these classes.

You also get fast support and clear updates from LTPCBA. The team answers questions quickly and solves problems fast. Many customers report cost savings and on-time delivery. LTPCBA uses advanced machines and skilled workers to keep quality high and costs low.

When you choose LTPCBA for your pcb assembly, you get a partner who cares about quality, speed, and your success. You can trust your functional pcb to meet your needs, whether you need a prototype or a large production run.

Choosing LTPCBA

Service Factors

When you pick a pcb fabrication contractor, you should think about some key things. These things help you get the best results for your pcb projects.

1. Check what the provider can do. Not every company can make every kind of pcb or do every assembly job. Make sure they can handle your project.

2. Look for certifications like ISO 9001. These show the company follows strict quality rules.

3. Ask how long it takes to finish orders. Fast work helps you meet your deadlines. LTPCBA can finish prototypes in 24–48 hours and big orders in 5–10 days.

4. Compare prices. Think about the cost, quality, and support you get.

5. Check their quality control. Good companies use AOI, X-ray, and other tests to find problems early.

6. Think about customer service. LTPCBA gives 24-hour help and answers your questions fast.

Tip: Always ask about the smallest order you can place, if they help with prototypes, and how they pack your boards.

Ensuring Reliability

You want your pcb to work well and last a long time. LTPCBA uses many ways to make sure your pcb fabrication and assembly are high quality.

• LTPCBA follows ISO 9001 and other world standards. This helps lower defects and keeps quality high.

• The team uses advanced tests like AOI and X-ray to find problems before shipping.

• They test if your pcb can handle heat, cold, and shaking.

• LTPCBA controls every step, from checking the design to the last inspection.

• You get clear reports and updates at each step.

To help your project go well, try these tips:

1. Give your provider clear design files and needs.

2. Ask about their certifications and how they test.

3. Request updates and reports often.

4. Plan for a small test run before making lots of boards.

5. Check how they pack and ship your pcb to keep it safe.

Note: Talking early and clearly with your pcb fabrication contractor helps stop mistakes and delays.

You can get good pcb results if you follow best practices and pick a trusted partner.

• LTPCBA uses smart machines, AI checks, and strict rules to reach a 99.5% success rate for pcb projects.

• You get help from experts, quick answers, and strong quality.
  Think about asking for a price or talking to LTPCBA for your next pcb project.

FAQ

What files do you need for PCB fabrication and assembly?

You need Gerber files, a Bill of Materials (BOM), and a pick-and-place file. These files help you get accurate boards and correct assembly.

How fast can you get your PCB order from LTPCBA?

LTPCBA can deliver prototypes in 24–48 hours. Standard production orders usually take 5–10 days. You get fast service for urgent projects.

How does LTPCBA ensure PCB quality?

LTPCBA uses AOI, X-ray, and functional tests. The team follows ISO and UL standards. You get reliable boards with a 99.5% pass rate.
