Mastering BGA Assembly with Proven Tips and Techniques

Tony Zh Yi

·May 6, 2025

·14 min read

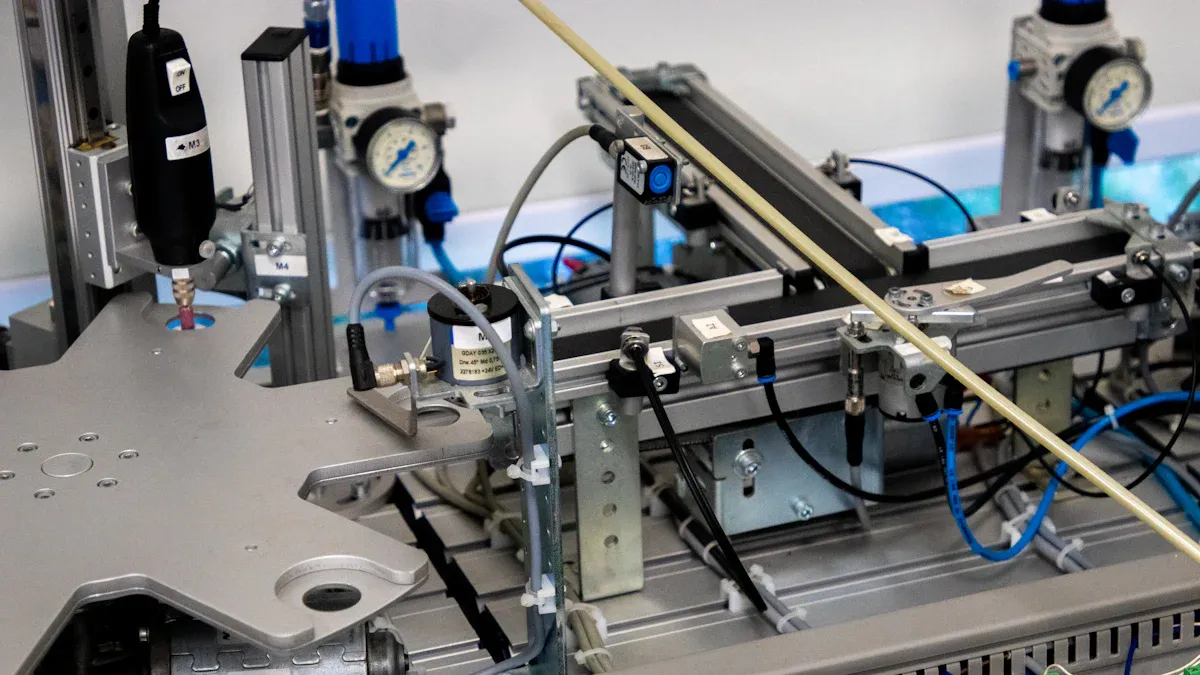

Mastering BGA Assembly with Proven Tips and Techniques — Image Source: pexels

Achieving great results in BGA assembly needs skill and care. Small mistakes can cause problems, as accuracy above 82% helps find errors. New technology is very important here. For example, smaller parts and better designs make things work faster and smoother. LTPCBA is great at this, giving top tools and services to make assembly easier and more dependable.

Key Takeaways

BGA assembly is important for today’s electronics. It gives better performance and saves space. Knowing its value can improve how you assemble.
Using proper tools, like accurate pick-and-place machines and good solder paste, is key for BGA assembly. These tools stop problems and make strong connections.
Keeping your workspace clean and handling BGA parts carefully avoids dirt and damage. This helps make your assembly better and more reliable.

Understanding BGA Assembly

What is BGA Assembly

BGA stands for Ball Grid Array. It is a type of surface-mount package used for chips. It has small solder balls underneath that connect to the PCB. This design allows more pins and better performance than older methods like QFPs. For example, a PBGA can have 520 pins, special solder balls, and no-clean flux. This makes it great for small, high-speed devices.

The BGA assembly process places the component on the PCB carefully. Then, soldering connects it strongly for both power and stability. Advanced methods, like process control, help apply solder paste accurately. This reduces problems like open circuits or solder bridges.

Significance of BGA Assembly in Electronics Manufacturing

BGA assembly is very important in making modern electronics. Its small size saves space, allowing more parts on a PCB. Shorter electrical paths in BGAs improve signals and prevent overheating. These features make BGAs perfect for fast and dense devices.

But, there are challenges like solder wear, voids, and alignment problems. For example, if the BGA and PCB expand differently, solder joints can crack. Adjusting solder bump height and using better materials can fix this.

A study by 3Com showed how reliable BGAs are. QFPs often needed fixing due to solder issues, but BGAs worked without problems. This proves their efficiency.

Tools and Techniques for Effective BGA Assembly

To do BGA assembly well, you need the right tools:

Precise Pick-and-Place Equipment: Places BGAs correctly on the PCB.
High-Quality Solder Paste: Stops problems like voids and solder bridges.
Reflow Ovens with Optimized Profiles: Keeps soldering even and consistent.
Inspection Methods: X-rays find hidden problems like voids or misalignment.
Moisture-Proof Storage: Protects BGAs from damage during soldering.

Using these tools and methods helps avoid common issues. This ensures strong and reliable BGA soldering.

Common Challenges in BGA Assembly

Alignment and Placement Issues

Getting parts in the right spot is very important. If parts are not aligned, problems like open circuits can happen. One common problem is "Head-in-Pillow." This happens when solder balls don’t connect well because of bad alignment. It can affect up to 15% of joints if the process isn’t done right.

To fix alignment problems, use accurate pick-and-place machines. Check the position of parts before soldering them. Also, calibrate your machines often to keep them working correctly. This helps avoid mistakes.

Problem Type	How Often It Happens and Why
Head-in-Pillow (HiP)	Happens in up to 15% of joints when processes aren’t optimized.

Solder Paste Application Challenges

Putting solder paste on correctly is very important. If it’s uneven, it can cause problems like bridges or missing connections. The stencil used should match the part layout for better results.

Use good-quality solder paste and apply it with steady pressure. This helps avoid common mistakes. Machines can also help spread the paste evenly on the board.

Temperature Profiling and Reflow Process Optimization

Setting the right temperature is key for good soldering. Wrong settings can cause weak joints or gaps. Focus on things like how fast the heat rises, the highest temperature, and how long the heat stays.

Metric	Why It Matters
Time Above Liquidus	Helps solder stick better and avoids trapped flux.
Peak Temperature	Too high can ruin solder joints; just right makes them strong.
Ramp Rate	Controls how fast heat activates the solder.
Soak Time	Needs balance to stop oxidation and trapped air.

Watching these factors ensures the solder melts properly and sticks well. Advanced ovens with good settings can make this easier.

Storage and Handling of BGA Components

Storing and handling BGA parts the wrong way can damage them. Things like dirt, scratches, or missing solder balls can cause problems. These issues can lower performance and make parts weaker.

To avoid this, store parts in containers that keep out moisture. Train workers to handle parts carefully. Clean parts properly and use protective materials during transport to keep them safe.

Problem	Cause	Effect	Solution
Dirt on Surface	Bad cleaning, poor handling, or exposure to air	Weak electrical performance, bad solder joints, or rust	Clean parts well, handle them carefully, and store them properly
Scratches	Rough handling or bad storage	Weaker parts, damaged coatings, and lower performance	Train workers, use protective covers, and clean gently
Missing Solder Balls	Factory mistakes or rough handling	Open circuits, bad connections, or device failure	Apply solder paste correctly and handle parts gently

Proven Tips and Techniques for High-Quality BGA Assembly

Proper Storage and Handling of BGA Components

Storing and handling BGA components the right way is very important. These parts can absorb moisture, especially those with plastic covers. When heated during soldering, trapped moisture can expand. This may cause cracks or damage inside the component. To stop this, keep BGA components in moisture-proof boxes. Also, bake them at temperatures below 100°C for 6 to 8 hours.

Key Point	Description
Humidity Absorption	Plastic covers soak up moisture, causing damage when heated.
Baking Conditions	Baking below 100°C for 6–8 hours prevents moisture problems.
Handling Practices	Good training and storage improve quality and reliability.

Touching parts by hand can also cause mistakes or damage. Teach workers to handle parts carefully. Use machines to place parts instead of doing it manually. These steps help make the assembly process better and more reliable.

Optimizing Stencil Design for Accurate Solder Paste Application

The stencil design affects how well solder paste is applied. This is very important for good BGA soldering. Studies show that smaller stencil holes reduce gaps and improve solder flow. This helps spread solder paste evenly and avoids problems like weak joints or bridges.

Use stencils with holes that match your BGA components.
Pick a stencil thickness that gives the right amount of solder paste.
Check and clean stencils often to keep them working well.

By improving stencil design, you can apply solder paste more accurately. This reduces mistakes and makes soldering more reliable.

Enhancing the Reflow Process for Consistent Results

The reflow process is key to making strong solder joints. Setting the right temperature ensures solder melts evenly and sticks well. Important things to watch include how fast the heat rises, soak time, peak heat, and time above liquidus.

Metric	Importance
Ramp Rate	Controls how fast solder heats, avoiding stress.
Soak Time	Prevents oxidation and activates flux.
Peak Temperature	Makes strong joints without harming parts.
Time Above Liquidus	Lets solder flow and bond properly.

Studies show reflow settings also affect joint strength. Keeping steady reflow conditions avoids gaps and ensures good soldering. Modern ovens with precise heat control make this easier.

Advanced Inspection Methods for BGA Soldering

Checking solder joints is crucial for good BGA soldering. Advanced tools like X-rays can find hidden problems such as gaps or misaligned parts. Cross-section X-rays give detailed images of solder joints, which older methods can’t do.

Technological Advance	Impact on BGA Soldering Inspection
X-ray Inspection Technology	Finds hidden problems, improving connection quality.
Cross-section X-ray Inspection	Shows detailed joint images for better problem detection.
Automated Laser Inspection	Checks solder paste but not reflow quality.

Using these advanced tools helps catch and fix issues early. This improves the overall quality of the assembly process.

Maintaining a Clean and Contaminant-Free Work Environment

A clean workspace is very important for reducing mistakes in BGA assembly. Dirt or leftover materials can cause soldering problems or damage surfaces. Cleaning tools and work areas often helps avoid contamination. Tools like automated optical inspection (AOI) systems and chemical tests can check for cleanliness and find issues.

Tip: Smaller electronics are more likely to have problems from dirt. Keeping the area clean avoids these issues and improves reliability.

By focusing on cleanliness, you can make BGA assembly more dependable and reduce errors.

Identifying and Fixing Common Problems in BGA Assembly

Common Problems in BGA Soldering (e.g., Bridging, Voids, Misalignment)

When doing BGA soldering, some problems can happen. These include bridging, voids, and misalignment. Knowing about these issues helps make better solder joints.

Problem Type	What It Is	Acceptable Limit
Bridging	Solder balls join and cause short circuits.	No bridging unless planned in the design.
Voids	Air bubbles weaken solder joints.	Voids must be under 20% of the ball size.
Misalignment	BGA doesn’t match PCB pads properly.	Misalignment is not allowed.

Bridging happens when solder balls touch by mistake, causing shorts. Voids are air bubbles that make joints weaker. Misalignment occurs when the BGA doesn’t line up with the PCB pads. These problems can lower the quality of your assembly if not fixed.

Causes and How to Prevent Them

To stop BGA defects, you need to know what causes them. Each problem has specific reasons and solutions.

Bridging: Too much solder paste or bad stencil design causes this. Use the right stencil size and apply solder paste carefully to avoid it.
Voids: Air or flux gets trapped during heating. Use good solder paste and set the right heat levels to reduce voids. X-rays can find voids early.
Misalignment: This happens from bad placement or bent PCBs. Calibrate machines and use flat PCBs to fix this.

By following these steps, you can make better solder joints and avoid common problems.

Fixing and Repairing BGA Defects

Even with care, problems can still happen. Good repair methods can fix these without damaging the PCB.

Study/Metric	Findings	What It Means
BGA Ball Shear Tests	Solder balls stay strong after up to five repairs.	Repairs can be done more than twice for plastic BGAs.
Thermal History Effects	Strength changes slightly with heat; SAC305 weakens a bit after heat.	Knowing this helps improve repair processes and set limits.

Fixing BGA components means removing the bad part, cleaning the pads, and re-soldering it. Use tools with good heat control to avoid damage. X-rays check if the repaired joints are good. Studies show solder joints stay strong even after several repairs, especially with Pb-based alloys or good heat settings.

By learning these repair methods, you can fix problems and keep your assembly high-quality.

Advantages of BGA Technology

Small Size and Space-Saving Design

BGA technology is great for saving space in electronics. Its design removes the need for wire bonds, like in FC-BGA. This makes the package smaller and perfect for tight spaces, such as in phones and tablets.

BGAs fit more pins in less space, ideal for dense designs.
The design lowers electrical noise, improving signal quality.
BGA packages also help spread heat, keeping devices cool.

BGA technology is common in gadgets because it saves space and boosts performance. It allows more parts to fit into smaller devices, making them work better.

Better Heat and Signal Performance

BGA assemblies handle heat very well. The solder balls move heat away from the chip, stopping it from overheating. This is important for systems like gaming consoles and servers that need to stay cool.

For signals, BGAs make short, direct connections to the PCB. This reduces interference and speeds up data transfer. Networking devices benefit from this because they need fast, reliable signals. Shorter leads in BGAs also lower noise, making them great for precise tools like medical scanners.

Works Well for High-Density Uses

BGA technology is perfect for high-density uses in cars, planes, and military gear. These industries need parts that work well under tough conditions like heat and vibration.

A study by the U.S. Air Force found that over 20% of electronics fail early due to vibration and heat, with 75% of issues caused by these stresses.

To solve these problems, CGA (Column Grid Array) was created as a stronger option than BGA. Many BGA parts can be upgraded to CGA for better durability. This makes them last longer and perform better in harsh environments.

LTPCBA’s Skill in BGA Assembly

Modern Tools and Quality Checks

LTPCBA uses advanced tools to make BGA assembly precise and reliable. Their X-ray systems find hidden problems like air gaps or misaligned solder joints. These checks follow strict quality rules to ensure great results. They also have strong quality checks at every step to keep things consistent.

Benefit	What It Means
Lower assembly cost	BGA assembly costs less than older SMT methods.
Self-aligning during reflow	BGA parts adjust themselves during heating for better placement.
High connection density	BGAs allow more connections, improving how devices work.
Strong solder connections	NSMD pads hold solder better, making joints stronger and more reliable.

LTPCBA can produce 60,000 square meters of PCBs and 240 million SMT points each month. Their 99.5% pass rate shows their focus on top-quality work.

Full Services for BGA Assembly

LTPCBA provides many services to meet your BGA assembly needs. Their Automated X-ray Inspection (AXI) systems check for problems like bad solder joints or air gaps. They use two types of X-ray systems to ensure quality at every step. A detailed quality check process confirms their products are dependable.

These services make LTPCBA a great choice for BGA assembly. Whether you need prototypes or medium production runs, they ensure every part meets high standards.

Customer-Focused Service and Help

LTPCBA listens to your needs and offers custom solutions. They combine resources from different industries to deliver the best results. They focus on balancing quality and quantity, which makes them different from other providers.

By focusing on customer satisfaction, LTPCBA makes the process smooth and easy. Their commitment to understanding your needs and delivering reliable results makes them a trusted partner for BGA assembly.

Learning the BGA assembly process improves performance, reliability, and saves money. By solving problems and using smart methods, you can get great results. LTPCBA’s skills and modern tools make this easier, giving top-quality outcomes. Check out the benefits of BGA technology below:

Benefit	What It Does
Saves Space	Fits more pins and parts on a PCB, perfect for small designs.
Better Signal Quality	Shorter paths improve signals by reducing unwanted interference.
Handles Heat Well	Bigger contact areas help remove heat, great for hot devices.
More Durable	No leads mean fewer cracks in solder joints, making products last longer.
Cuts Costs	Smaller PCBs and fewer parts lower assembly expenses.
Works for Fast Devices	Ideal for high-speed and high-frequency gadgets, keeping signals clear.

Tip: Use these ideas and work with LTPCBA for expert help to improve your assembly process.

FAQ

How can you stop solder voids in BGA assembly?

To avoid solder voids, use good-quality solder paste. Set the reflow temperature correctly. Check joints with X-rays to find hidden air bubbles.

How should you store moisture-sensitive BGA parts?

Keep moisture-sensitive BGAs in airtight, moisture-proof boxes. Before using, bake them at low heat (under 100°C) for 6–8 hours to dry out any moisture.

Can you fix BGA parts after soldering problems?

Yes, you can fix BGA parts by removing the bad piece. Clean the pads and solder it again. Use X-rays to check if the repair worked well.
