How lead-free wave soldering in SMT prevents and controls Pb contamination

Tony Zh Yi

·July 3, 2025

·6 min read

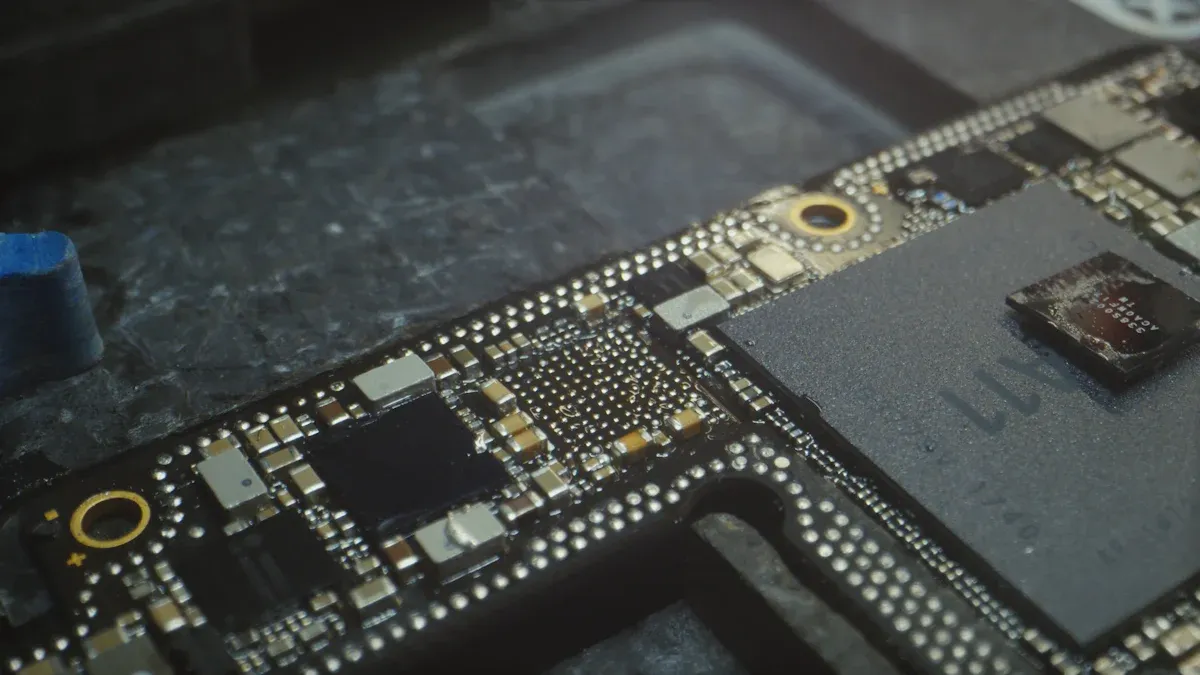

How lead-free wave soldering in SMT prevents and controls Pb contamination — Image Source: Pixabay

You need lead-free wave soldering to stop Pb contamination in your surface mount technology projects. Lead-free wave soldering uses special ways to solder and strong quality checks. LTPCBA uses high standards for soldering. You can trust their soldering process. It meets safety rules and keeps your devices safe from Pb.

Key Takeaways

Pick the correct lead-free solder alloy and use different equipment to stop lead contamination in your circuit boards. - Check and test the soldering process often to find problems early and make sure products are safe and good quality. - Teach your team well and follow safety rules to keep work areas clean and follow important laws.

Lead-Free Wave Soldering Prevention

Solder Alloy Selection

You have to pick the right solder alloy to keep your pcb safe from lead. Lead-free wave soldering uses alloys that do not have lead in them. Alloys like SAC305 are common and have tin, silver, and copper. These alloys melt at higher temperatures than old lead-based solder. Using lead-free wave solder helps stop contamination on your printed circuit board. This step keeps your circuit boards safe and follows safety rules. Choosing the right alloy is the first step in wave soldering.

Tip: Always look at the alloy mix before you start soldering. This helps you make sure there is no hidden lead.

Equipment Segregation

You need to keep soldering equipment for lead-free and leaded work apart. If you use the same machines, you can get cross-contamination. LTPCBA uses special machines just for lead-free wave soldering. This gives you a clean place for your pcb assembly. You should also put labels on all tools and machines. This helps everyone use the right process and keeps your soldering safe from lead.

Use different solder pots for lead-free and leaded soldering.
Clean all equipment before you change to a new process.
Keep tools in marked places.

Material Handling

You must handle all materials carefully to stop contamination. Store lead-free solder and parts in special boxes. Keep these away from any leaded materials. LTPCBA has strict storage rules for all soldering materials. You should check all new parts for lead. This keeps your pcb safe and helps keep wave soldering clean.

Material Type	Storage Method	Risk of Contamination
Lead-Free Solder	Sealed, labeled bins	Low
Leaded Solder	Separate, locked area	High
Components	Inspected, isolated	Low

LTPCBA Quality Assurance

You want every pcb to be high quality. LTPCBA checks quality at every step of soldering. The team uses machines to look for problems. They also follow rules like RoHS and ISO. These rules help keep lead levels low and stop contamination. LTPCBA trains workers to use all materials and equipment the right way. You get a wave soldering process that protects your products and meets safety rules.

Note: Keeping things clean and following good steps keeps your soldering free from lead. This keeps your customers and your brand safe.

Contamination Control and Compliance

Process Monitoring

You have to watch every step in soldering to keep your pcb safe from lead. Checking often helps you find problems early. Clean and check the solder pot a lot. This stops bad stuff from getting into the solder bath. It keeps your circuit boards clean. Many factories use air checks in cleanrooms to find risks fast. You can also watch temperature, humidity, and air pressure. This keeps the room steady. Some companies use cameras and machine learning to see how workers handle the printed circuit board. These tools give quick feedback and help you fix problems fast. When you collect data from these checks, you can see where contamination starts. Then you can stop it. Over time, you will see fewer mistakes and cleaner pcb assemblies.

Tip: Use a contamination matrix to find where problems happen most. This helps you know where to clean and check more.

Testing and Verification

Testing is very important for keeping lead low in soldering. You need strong ways to check for lead contamination. Many companies use Inductively Coupled Plasma Mass Spectrometry (ICP-MS). It finds even tiny bits of lead. You should use reference materials to make sure your results are right. Testing often helps you stay under safety limits. Looking at joints with magnifiers helps you find problems like pinholes or bad solder. Standards like IPC J-STD-002 and IPC J-STD-003 tell you how to test and what to look for. These rules say you need at least 95% solder coverage for most joints. You can see the main test ways in the table below:

Standard	Primary Scope	Key Test Methods	Typical Preconditioning	Acceptance Criteria (Visual)
IPC J-STD-002	Component leads, terminations, wires, tabs	Dip & Look, Simulation, Wetting Balance	Steam aging (1-16h), dry bake (4h@155°C)	≥95% solder coverage (≥80% for exposed pads)
IPC J-STD-003	PCB pads, surface conductors, plated-through holes (PTHs)	Edge Dip, Wave Solder, SMT Simulation, Wetting Balance, Solder Float	Steam aging, baking, multi-stress cycles	≥95% coverage (varies by finish/class)
MIL-STD-883 Method 2003	Microcircuit terminations (SnPb focus)	Dip & Look (via J-STD-002 tests)	Steam aging (1h or 8h depending on finish)	≥95% coverage

You should always keep records of your test results. This helps you show your soldering meets safety rules and keeps your products safe.

Staff Training

Your team is very important for stopping contamination during soldering. You need to teach everyone how to handle materials and equipment the right way. Training covers risks like finger oils, dust, and static. Workers learn to wear gloves, follow cleanroom rules, and work in special airflow areas. You should have training classes and regular refreshers. This keeps everyone up to date on the best ways to stop lead contamination. Staff learn how to find problems and use inspection tools. Cleanrooms with HEPA filters, sticky mats, and lint-free gloves help keep things clean. When your team knows what to do, you get better soldering and safer pcb assemblies.

Teach staff about contamination risks and how to handle things.
Use cleanroom gear and follow gowning rules.
Check cleanliness with special inspection tools.

Regulatory Standards

You must follow strict rules to keep soldering safe and legal. Standards like RoHS, REACH, UL, and ISO set limits for lead and other bad stuff. You need to keep good records, like Bills of Materials and Certificates of Compliance. These papers show your pcb and soldering meet all safety and environmental rules. Regular audits check your cleanroom, equipment, and staff training. You should update your records and train your team often to be ready for checks. If you find a problem, you must fix it fast to keep your products safe. Following these rules helps you avoid recalls, fines, and damage to your brand. It also shows your customers you care about safety and quality in every printed circuit board you make.

Note: Keeping up with new rules and using the latest technology helps you stay ahead in compliance and product safety.

When you use lead-free wave soldering, your products stay safe. Following strong contamination control also helps a lot. These actions help you follow safety rules. LTPCBA makes sure every soldering job is high quality and new. Pick a partner you trust for SMT work. This keeps your devices working well and safe.

FAQ

What is lead-free wave soldering and why do you need it?

Lead-free wave soldering uses special alloys without lead. You use it to keep your circuit boards safe from lead contamination and to meet safety rules.

How do you prevent solder bath contamination during the wave soldering process?

You keep the solder bath clean by using only lead-free wave solder. You check and clean the soldering equipment often to stop contamination in your printed circuit board.

Why is quality important in the soldering process for surface mount technology?

Quality keeps your pcb safe from lead contamination. You get strong connections on your circuit boards. Good quality in the soldering process helps your products last longer.
