Real-World Examples of Industrial Control Board PCBA Prototype Assembly Success
Industrial control board PCBA prototype assembly requires precise execution and rapid iteration during the initial development phase. Manufacturers often encounter challenges such as soldering defects, component damage, and the complexities of multilayer PCBs. By utilizing industrial control board PCBA prototype assembly, companies can achieve fast validation and early detection of potential issues, minimizing costly redesigns and enhancing overall product quality. Advanced PCBA fabrication solutions streamline the process, enabling quick setup and automated assembly to accelerate time-to-market for industrial products. LTPCBA’s expertise in industrial control board PCBA prototype assembly demonstrates how innovative strategies and strict process controls deliver reliable, high-quality results for industrial applications.
Key Takeaways
Rapid prototyping in industrial control board PCBA helps detect design issues early, saving time and reducing costly errors.
Strict quality control and automated inspections like AOI and X-ray ensure reliable and high-quality PCB assemblies.
Advanced automation speeds up assembly, improves accuracy, and supports quick delivery of prototypes and production runs.
Flex PCB assembly enables compact, durable designs with sensor integration, enhancing product performance.
LTPCBA’s turnkey services combine design, assembly, and testing to deliver consistent quality and fast turnaround.
Prototype Importance in Industrial Control PCB Assembly
Product Development Impact
In industrial control pcb assembly, the prototype stage shapes the entire product development process. Engineers use pcb prototypes to verify electrical, mechanical, and functional requirements early. This step helps detect layout errors, incorrect hole positions, and tolerance issues before mass production. Rapid prototyping enables quick design verification and improvements, which shortens development cycles and speeds time-to-market. Fast and accurate assembly of pcb prototypes allows teams to refine designs and address manufacturability challenges. In applications of industrial control pcb assembly, early detection of problems reduces costly rework and project delays. Choosing a responsive pcba partner ensures short lead times and on-time delivery, which is critical for industrial innovation.
Risk and Compliance
Industrial control pcb assembly must meet strict regulatory standards. During the prototype phase, manufacturers validate circuit functionality and perform rapid design iterations. This process helps identify compliance issues before full-scale assembly. Key industry standards include:
ISO 9001:2015 for quality management systems
IATF 16949:2016 for automotive and industrial reliability
RoHS and REACH for environmental safety
UL for electrical safety
Early prototype testing informs design and process adjustments, reducing regulatory risks. Traceable component sourcing supports compliance with RoHS and REACH, which is vital for applications of industrial control pcb assembly. Effective pcba prototyping and fabrication solutions help manufacturers manage supply chain risks and ensure regulatory readiness.
Quality Assurance
Quality remains central to industrial control pcb assembly. Manufacturers use visual and X-ray inspection, peel tests, solderability tests, and automated optical inspection to evaluate pcb prototypes. Electrical continuity and hi-pot tests confirm reliability, while in-circuit and stress tests assess performance under harsh industrial conditions. LTPCBA demonstrates commitment to quality through certifications such as ISO 9001:2015, IATF 16949, IPC-A-610 Class 3, and UL. Their robust quality management system, real-time monitoring, and advanced testing ensure high reliability and consistent results in industrial applications. These practices guarantee that printed circuit boards meet the highest standards during the testing phase and beyond.
LTPCBA Case Studies: Industrial Control Board PCBA Prototype Assembly
Design Complexity Solutions
Industrial control pcb assembly projects often present significant design complexity. LTPCBA addresses these challenges by breaking down complex industrial control board designs into smaller, testable units. Early detection of design flaws prevents costly rework and ensures each pcb prototype meets functional requirements. Engineers at LTPCBA use design for manufacturing services to optimize blueprints, reducing complications during assembly and minimizing rework costs.
LTPCBA integrates design, assembly, and testing into a seamless turnkey process. This approach reduces time and cost while improving quality.
The team applies design for quality and design for cost principles, ensuring reliable and cost-effective industrial control board pcba prototype assembly.
Adjustments in materials or components help reduce costs, but LTPCBA maintains strict quality control to ensure specifications and manufacturing requirements remain consistent.
Functional and conditional testing verifies that prototypes reflect theoretical designs and survive industrial environments.
Iterative feedback and adjustments make the final product adaptable to changes during development.
LTPCBA’s skilled program management and onsite engineers maintain clear communication, reducing mistakes and achieving high first-pass success rates. Their commitment to quality and reliability sets a benchmark for industrial control pcb assembly.
Automated Assembly with LTPCBA

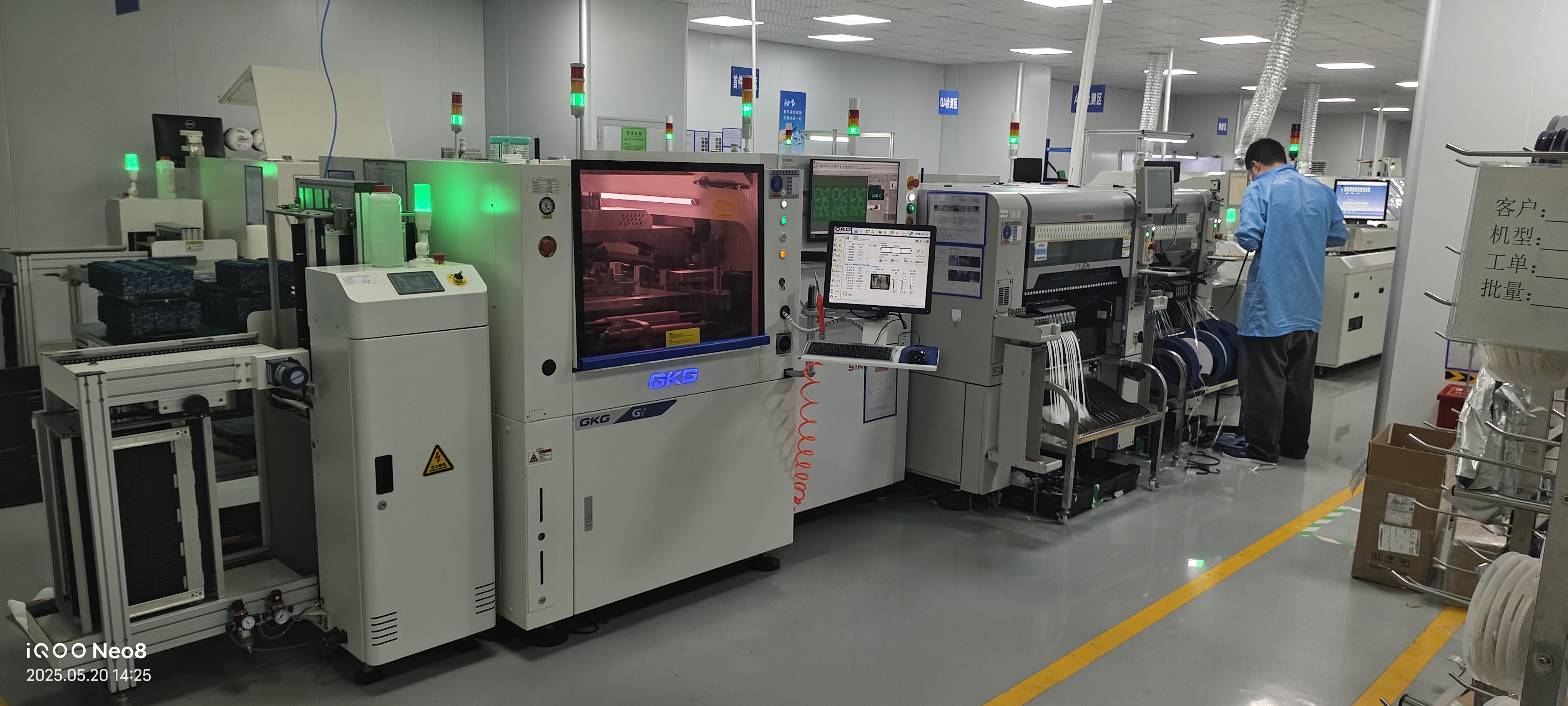

Automation plays a crucial role in LTPCBA’s industrial control board pcba prototype assembly. The company uses advanced automated equipment, including solder paste printers with SPI for ultra-fine pitch printing. Yamaha YSM10 pick-and-place machines enable high-speed, precise placement of components, supporting both ultra-small and large sizes. Reflow ovens with precise temperature control ensure quality soldering for delicate components.
Automated SMT first article inspection machines use AI vision and flying probe technology to verify component placement and BOM compliance.
X-ray inspection systems detect hidden solder joint defects inside multi-layer pcbs, enhancing quality control for complex assemblies.
DIP production lines automate through-hole component assembly, supporting various industrial control board sizes.
Automated optical inspection, X-ray, and functional testing prevent defects and ensure high reliability, especially for industrial control applications like PLCs and motor control systems.
LTPCBA offers quick-turn prototyping services, starting from a single piece. These automated processes accelerate time to market and reduce defects in industrial control pcb assembly. The company’s advanced technologies include high-speed SMT production lines, automatic solder paste printing machines, SPI detectors, multi-temperature zone reflow soldering, and sophisticated pcba testing equipment.
Metric | Description | Benefit to Prototype Projects |
|---|---|---|
First Pass Yield (FPY) | Percentage passing quality checks first attempt | High FPY (95%) reduces waste, saves time, improves reliability |
On-Time Delivery Rate | Projects delivered on schedule | High rate (97%) ensures timely prototype availability |
Production Cycle Time | Time to complete production | Short cycle (12 hours) accelerates turnaround |
Automated Inspection Tools | AOI, ICT, robotics for early defect detection | Early error detection reduces rework, improves accuracy |
Waste Reduction | Minimizing material and process waste | Cuts costs, reduces environmental impact |
LTPCBA’s automated assembly delivers measurable benefits, including faster, more accurate prototyping, early problem detection, reduced waste, and improved reliability. These advantages support industrial control board pcba prototype assembly success and customer trust.
Flex Circuit Sensor Integration
Flex pcb assembly is essential for modern industrial control board designs, especially when integrating sensors. LTPCBA meets technical requirements by selecting flexible substrates with excellent thermal stability and dielectric properties. The team designs flex pcb stackups early to address impedance and electrical parameters. Engineers avoid sharp bends and use large curved angles, maintaining proper spacing between plated through holes and bend areas.
Details | |
|---|---|
Materials | Polyimide, FR-4, PI stiffeners, adhesive & adhesiveless constructions |
Layer Count | Single-layer to 10+ layers for rigid flex |
Trace Width/Spacing | As low as 50 µm for HDI-grade flex |
Flexibility Cycles | Tested for millions of dynamic flex cycles |
Component Types | SMT, BGA, µBGA, QFN, through-hole on rigid zones |
Stiffener Support | PI, FR4, aluminum, stainless steel |
Controlled Impedance | Impedance-controlled designs with modeling |
Surface Finishes | ENIG, ENEPIG, OSP, Immersion Tin, Gold |
Shielding Options | Copper layers, conductive adhesives, shielding films |
Design Rules | Avoid sharp bends, maintain spacing from plated through holes near bend areas |
Assembly Process | Secure flexible PCBs during SMT assembly |
Quality Assurance | Mechanical and electrical tests including dynamic flex testing |
LTPCBA secures flex pcbs in jigs for SMT processes, including solder paste printing, component placement, reflow soldering, and inspection. Quality assurance tests such as tension testing, bending testing, and environmental protection testing ensure mechanical resilience and electrical integrity. The company’s expertise in flex pcb assembly supports high-quality pcbas for industrial control board applications.
LTPCBA’s industrial control board pcba prototype assembly projects demonstrate success through advanced flex pcb assembly, rigorous quality control, and innovative solutions. Their ability to deliver successful prototype assemblies with fast turnaround and high reliability makes them a trusted partner for industrial control pcb assembly.
Effective PCBA Fabrication Solutions for Industrial Control
Turnkey Services
LTPCBA delivers comprehensive pcba fabrication solutions for industrial control board projects. Their turnkey services streamline every step, from prototype design to final assembly. Customers benefit from a single point of contact, which reduces miscommunication and project management complexity. Centralized quality assurance enables immediate defect tracing and correction. The process scales easily from prototype to mass production, maintaining consistent quality. LTPCBA manages material procurement, in-house fabrication, automated assembly, and rigorous testing. This approach saves time, cuts costs, and ensures reliable delivery. Customers report high satisfaction with service quality, timely delivery, and product standards.
Single point of contact for all project stages
Centralized quality control and defect correction
Scalable solutions from prototype to mass production
Efficient component procurement and reduced lead times
Automated assembly processes for accuracy and throughput
Comprehensive testing before delivery
Metric | Reported Rate |
|---|---|
Customer Satisfaction | |
Pass Rate | At least 99.5% |
Quality Complaint Rate | Less than or equal to 0.1% |
Innovation and Automation
LTPCBA leads the industry in manufacturing automation for industrial control board fabrication. Automated pick-and-place machines achieve ±0.01mm placement accuracy, critical for small components. SOPs guide consistent execution of automated processes, including solder paste inspection. AI-powered inspection systems provide real-time defect detection, shortening inspection times and reducing defect rates by 30%. Robotic systems handle material and inspection tasks, minimizing human error. Digital twins optimize production lines, and parallel testing speeds up prototype assembly. Advanced equipment such as AOI, X-ray, and functional testing ensures enhanced product quality and reliability. Automation enables quick-turn services, with prototype delivery in 24–48 hours and production runs in 5–10 days.
Manufacturing automation drives high first-pass yield, reaching 99.5%, and supports rapid innovation in industrial control board fabrication.
Sustainability Practices
LTPCBA integrates sustainability into every aspect of pcba fabrication for industrial control applications. Responsible sourcing ensures components meet environmental and ethical standards. The use of eco-friendly materials, such as lead-free solder and recyclable substrates, reduces the environmental footprint. Energy-efficient production technologies and renewable energy investments lower carbon emissions. Waste reduction programs and circular economy principles promote recycling and responsible e-waste disposal. Compliance with RoHS and ISO 14001 supports environmental management and transparency. These practices help preserve resources and reduce pollution, supporting customer satisfaction and long-term reliability.
LTPCBA’s commitment to sustainability, quality, and manufacturing automation ensures effective pcba fabrication solutions for industrial control board prototype assembly, delivering high customer satisfaction and enhanced product quality.
LTPCBA’s experience in industrial control board prototype assembly highlights several best practices:
Automated inspection and testing, such as AOI and X-ray, ensure high-quality assembly.
Functional and environmental testing validate prototype durability for industrial use.
Advanced machinery and process optimization deliver rapid prototype turnaround.
Effective PCBA fabrication solutions improve assembly accuracy, reduce defects, and support long-term industrial success. Manufacturers benefit from fast prototype delivery, robust quality control, and responsive support. For reliable industrial control board assembly, visit LTPCBA’s website.
FAQ
What makes industrial control board pcba prototype assembly critical for product development?
Industrial control board pcba prototype assembly enables engineers to validate designs quickly. Rapid prototyping helps teams identify issues early. This process improves reliability and accelerates time-to-market for industrial products. Companies achieve high-quality pcbas and enhanced product quality through effective pcba fabrication solutions.
How does LTPCBA ensure high reliability and quality control in industrial control pcb assembly?
LTPCBA uses ai-powered inspection systems and real-time defect detection. Automated testing phase procedures verify printed circuit boards. Manufacturing automation and strict quality control deliver high reliability. Customers report satisfaction with LTPCBA’s solutions for industrial control pcb assembly.
What are the benefits of flex pcb assembly in industrial control board applications?
Flex pcb assembly supports compact designs and sensor integration. Engineers select materials for durability and flexibility. This assembly method improves reliability and enables successful prototype development for industrial control board projects. Customers experience enhanced product quality and satisfaction.
How do effective pcba fabrication solutions support compliance and risk management?
Effective pcba fabrication solutions include traceable sourcing and automated inspection. These practices help manufacturers meet regulatory standards. Early testing phase procedures identify risks. Companies achieve compliance and maintain quality in applications of industrial control pcb assembly.
Why do customers choose LTPCBA for rapid prototyping and assembly?
LTPCBA offers quick-turn pcb prototypes and turnkey assembly services. Advanced manufacturing automation ensures fast delivery and high-quality pcbas. Customers value reliability, satisfaction, and solutions tailored to industrial needs. LTPCBA’s expertise supports successful prototype outcomes.
