Comparing PCBA Process Flows and Methods for Modern Electronics

Selecting the right PCBA process shapes the quality, cost, and suitability of every electronic product. PCBA, or printed circuit board assembly, involves mounting components onto a PCB, forming the core of all modern electronics. Each pcba method, such as SMT or THT, delivers unique advantages for different applications. Factors like pcb material, design complexity, and production volume directly affect both performance and budget. With strict quality standards and advanced technology, LTPCBA ensures reliable pcba process flow​ and consistent results for every printed circuit board project.

Key Takeaways

• Surface Mount Technology (SMT) offers fast, automated assembly with compact designs, ideal for high-frequency and mass production electronics.

• Through-Hole Technology (THT) provides strong mechanical bonds and durability, best for high-stress or high-power applications.

• Mixed technology combines SMT and THT to balance miniaturization and reliability, fitting complex and demanding electronic products.

• Advanced inspection methods like AOI and X-ray ensure high-quality PCBA by detecting defects early and improving reliability.

• Choosing the right PCBA method depends on product complexity, volume, cost, and quality needs to optimize performance and budget.

Key Differences in PCBA Methods

Modern electronics rely on several distinct pcb assembly methods to meet diverse product requirements. The main approaches include Surface Mount Technology (SMT), Through-Hole Technology (THT), and mixed technology assembly. Each method offers unique benefits for different applications, influencing the design, durability, and cost of the final pcb.

SMT vs THT

Surface Mount Technology (SMT) and Through-Hole Technology (THT) represent the two foundational approaches in pcb assembly. The following table summarizes their key differences:

SMT attaches components directly onto the surface of the pcb, enabling high-density layouts and compact designs. This method supports automated assembly, which increases speed and reduces costs for large production runs. SMT components are smaller, making them ideal for smartphones, laptops, and other miniaturized devices. In contrast, THT involves inserting component leads through drilled holes in the pcb and soldering them on the opposite side. This approach creates stronger mechanical bonds, making it suitable for applications exposed to vibration, heat, or mechanical stress, such as automotive electronics and industrial machinery.

Tip: SMT is preferred for high-frequency and high-density pcb assembly, while THT remains essential for components that require extra durability or are subject to harsh environments.

LTPCBA demonstrates expertise in both SMT and THT. The company uses automated pick-and-place machines and reflow soldering for SMT, ensuring precise placement and consistent quality. For THT, skilled operators handle manual or wave soldering, guaranteeing robust connections for larger components. LTPCBA’s advanced inspection tools, including AOI and X-ray systems, maintain high standards throughout the pcb assembly process.

Mixed Technology

Mixed technology assembly combines SMT and THT on a single pcb, leveraging the strengths of both methods. This approach allows designers to use compact SMT components for most of the circuit while reserving THT for parts that need greater mechanical strength or heat dissipation.

• Mixed technology pcb assembly starts with solder paste application and SMT component placement, followed by reflow soldering.

• After SMT steps, operators insert THT components and complete the process with wave or manual soldering.

• This combination increases design flexibility, enabling complex, multi-purpose pcb assemblies used in automotive dashboards, power supply units, and industrial control systems.

• Mixed assembly supports high reliability in demanding environments, as THT components provide stability and SMT enables miniaturization and fast signal transmission.

• Manufacturers benefit from cost savings by using SMT for most parts and THT only where necessary.

LTPCBA excels at mixed technology pcb assembly. The company carefully manages heat profiles for both reflow and wave soldering, ensuring component integrity. Multiple inspection stages, including AOI, X-ray, and functional testing, guarantee quality at every step. LTPCBA’s digital tracking and automation optimize production, reduce defects, and support both prototypes and mid-volume orders.

Note: Mixed technology pcb assembly offers the best of both worlds—compactness and automation from SMT, plus the durability and reliability of THT. This method is ideal for industries that demand both miniaturization and robust performance.

What is PCBA

Definition

PCBA stands for printed circuit board assembly. This term describes both the process and the finished product that results from mounting electronic components onto a pcb. In electronics manufacturing, pcba transforms a bare pcb into a functional printed circuit board. The process uses technologies such as Surface Mount Technology (SMT) and Through-Hole Technology (THT). SMT places components directly on the surface of the pcb, while THT inserts component leads through drilled holes. After soldering, the pcba becomes the operational heart of electronic devices. The term printed circuit board assembly is more common than older terms like PWA or PCA, which can cause confusion in the industry.

LTPCBA provides comprehensive pcba services, handling every step from component sourcing to final inspection. The company uses advanced automated systems to ensure precise placement and reliable soldering. LTPCBA adheres to international quality standards, including ISO, IATF, and UL certifications. Their commitment to quality and efficiency makes them a trusted partner for both prototype and mid-volume production runs.

Role in Electronics

PCBA plays a critical role in the production of modern electronic devices. The process transforms a simple pcb into a fully functional circuit by attaching and soldering components. Each step, from solder paste application to final testing, ensures the reliability and longevity of the printed circuit board. Manufacturers rely on pcba to guarantee device performance and durability.

PCBA improves production efficiency by integrating components seamlessly. Automated techniques enhance precision and reduce errors, leading to cost savings and higher reliability.

The multi-stage pcba process includes inspection, cleaning, and functional testing. These steps optimize electrical connectivity and protect the printed circuit board from harsh environments. PCBA remains indispensable for producing high-quality, reliable electronics, supporting everything from consumer gadgets to industrial machinery.

LTPCBA’s expertise in pcba ensures that every pcb meets strict quality requirements. Their advanced inspection tools, such as AOI and X-ray systems, detect defects early and maintain high standards throughout production. Customers benefit from LTPCBA’s quick response service and technical support, making the company a leader in printed circuit board assembly.

PCBA Process Flow Overview

A well-structured pcba process flow​ ensures high-quality results in modern electronics. Each pcb assembly method—SMT, THT, and mixed assembly—follows specific assembly steps that shape the final product. LTPCBA uses advanced automated systems and strict process management to deliver reliable pcb assembly for every project.

SMT Steps

Surface Mount Technology (SMT) dominates the pcb assembly process for compact and high-speed devices. The SMT manufacturing process uses automation to boost efficiency and accuracy. Here are the main assembly steps:

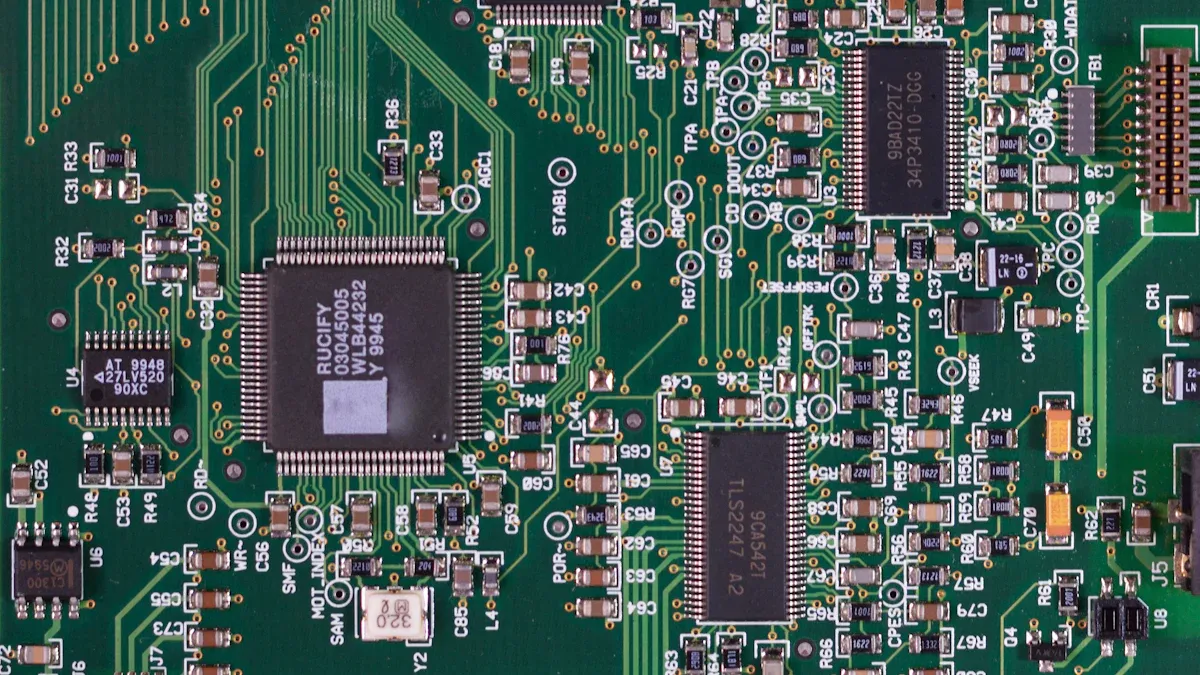

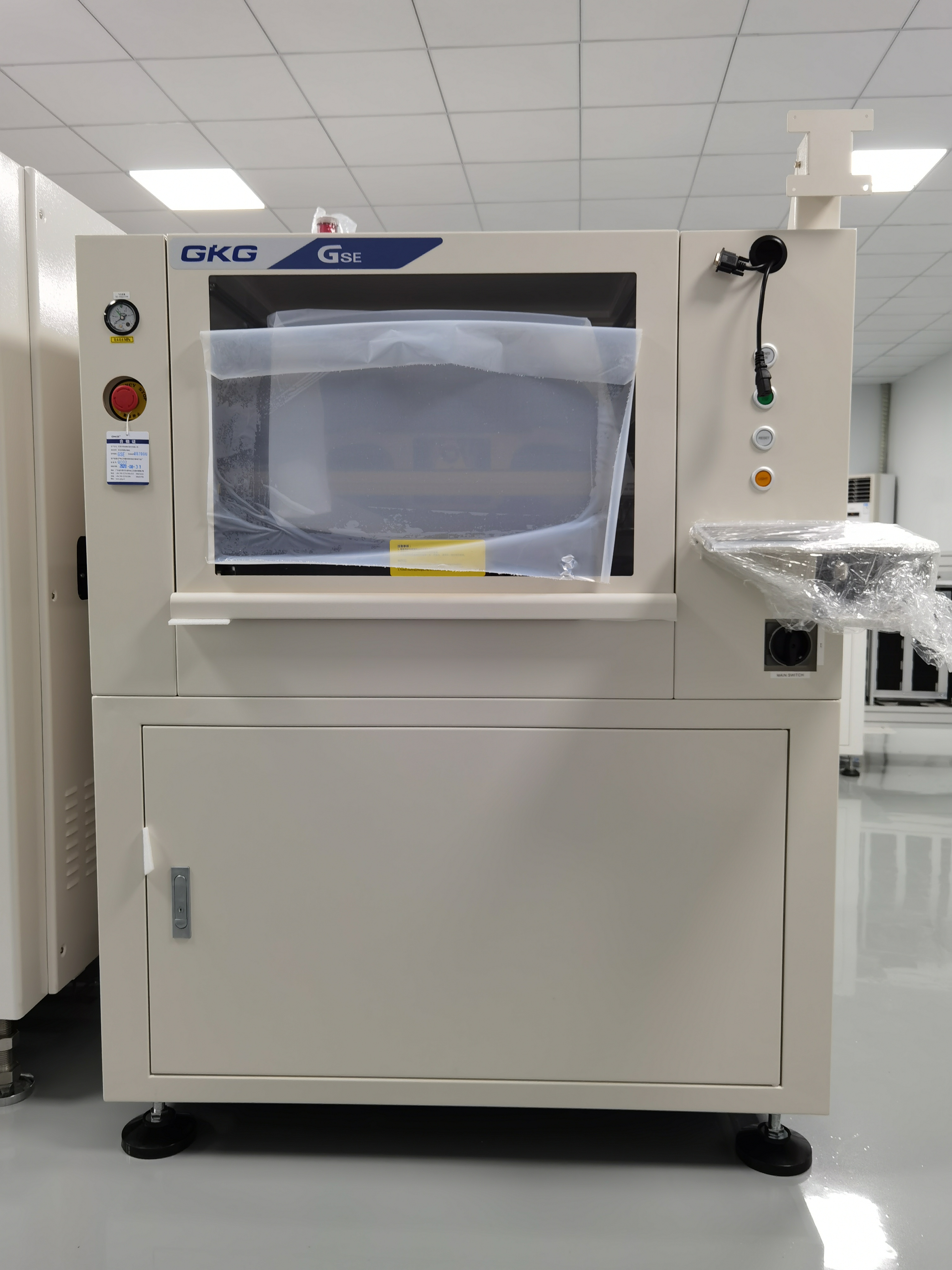

1. Solder paste printing applies solder paste to pcb pads using precise stainless steel stencils.

2. SMT component placement uses high-speed machines to position components on the solder-pasted pcb.

3. Reflow soldering heats the board, melting the solder paste and forming strong electrical connections. 4. Automated Optical Inspection (AOI) and X-ray inspection check for misalignments and soldering defects.

4. Cleaning removes flux residues, ensuring the reliability of the printed circuit board.

LTPCBA’s automated equipment and quality management systems reduce defects and speed up the pcb assembly process.

THT Steps

Through-Hole Technology (THT) remains vital for components needing strong mechanical bonds. The THT manufacturing process involves these assembly steps:

1. Manual or automated insertion of through-hole components into drilled pcb holes.

2. Wave soldering passes the pcb over molten solder, securing the components.

3. Visual inspection and functional testing confirm proper assembly and electrical performance.

4. Cleaning eliminates contaminants, protecting the pcb from future issues.

LTPCBA’s skilled technicians and advanced soldering equipment ensure robust connections and consistent quality in every pcb assembly.

Mixed Assembly Steps

Mixed technology combines SMT and THT in a single pcb manufacturing process. This approach maximizes both miniaturization and durability. The mixed assembly process flow includes:

1. Solder paste application and SMT component placement, followed by reflow soldering.

2. Insertion of through-hole components after SMT steps.

3. Wave or manual soldering to secure THT parts.

4. Multiple inspection stages, including AOI, X-ray, and functional testing.

5. Final cleaning and protective coating for long-term reliability.

LTPCBA’s digital tracking and robotics optimize each stage, ensuring a seamless pcba process flow​ from start to finish.

Automation, robotics, and real-time monitoring help LTPCBA maintain high standards and reduce errors throughout the pcb assembly process.

A reliable pcba process flow​ supports both prototypes and mid-volume production, making LTPCBA a trusted partner for all pcb assembly needs.

Method Pros & Cons

SMT Advantages & Limitations

Surface Mount Technology (SMT) has transformed pcb assembly with its focus on automation and miniaturization. This method brings several advantages:

• Automation streamlines manufacturing, increasing speed and reducing labor costs.

• SMT allows for high component density, enabling compact and lightweight pcb designs.

• Components can be mounted on both sides of the pcb, maximizing space.

• Automatic alignment during soldering reduces placement errors and improves reliability.

• SMT supports high-frequency applications by lowering lead inductance and electromagnetic interference.

• The process enables cost-effective high-volume production.

However, SMT also presents some limitations:

• Small component sizes make inspection and repair challenging, often requiring specialized tools like AOI or X-ray.

• Solder joints may become fragile under thermal cycling or mechanical stress.

• SMT is not ideal for high-power or high-heat components, as excessive heat can damage solder joints.

• Initial investment in equipment such as pick-and-place machines and reflow ovens can be significant.

• Prototyping and small-batch production may be expensive due to setup complexity.

SMT excels in high-speed, high-density pcb assembly but requires careful process control and advanced inspection for consistent results.

THT Advantages & Limitations

Through-Hole Technology (THT) remains important for applications that demand durability and strength. The following table highlights the main benefits and drawbacks:

THT offers robust soldering and is often chosen for industrial, automotive, and aerospace pcb assembly. However, the process is slower and less space-efficient compared to SMT.

Mixed Assembly Pros & Cons

Mixed assembly combines SMT and THT on a single pcb, leveraging the strengths of both methods:

• Designers use SMT for compact, high-density areas and THT for components needing mechanical strength or high power handling.

• This approach balances size, cost, and reliability, making it suitable for complex pcb assembly projects.

• Mixed assembly supports automation for most components while ensuring durability where needed.

• The process accommodates components that are unsuitable for SMT, such as connectors or large capacitors.

On the other hand, mixed assembly introduces additional process steps, requiring careful coordination between SMT and THT stages. This can increase production complexity and require advanced process management.

Mixed assembly provides flexibility for demanding applications, such as industrial controllers and communication hardware, where both miniaturization and ruggedness are essential.

Comparison Table

Side-by-Side Analysis

Selecting the right assembly method depends on several important criteria. Manufacturers evaluate cost, reliability, scalability, and inspection capabilities when comparing SMT, THT, and mixed assembly. Each method offers unique strengths for different production needs.

Key criteria for comparison include cost considerations, certifications, technology capabilities, process transparency, capacity, technical support, sustainability, and manufacturing practices.

Most important criteria to compare:

• Cost, including inspection fees and fixture design

• Certifications and standards, such as IPC-A-610 and ISO 9001

• Technology capabilities, including SMT, THT, and hybrid assemblies

• Process transparency and traceability

• Capacity and lead time

• Technical support and communication

• Sustainability and eco-friendly practices

The table below highlights how each assembly method performs across reliability, cost, and scalability:

Manufacturers use visual inspection, automated optical inspection (AOI), and X-ray inspection to ensure quality. AOI detects defects quickly and consistently, while X-ray inspection finds hidden issues in components like BGA and QFN. Acceptance criteria, based on standards such as IEC and RoHS, guarantee that assemblies meet reliability requirements.

Mixed assembly methods balance automation and manual placement. This approach supports complex designs and high-stress environments. SMT excels in mass production and miniaturization. THT remains valuable for prototyping and applications needing strong mechanical bonds.

Choosing the right assembly method improves product quality, reduces costs, and ensures scalability for future growth.

Choosing a PCBA Process

Selecting the right PCBA process depends on several important factors. Each electronic product has unique requirements for complexity, production volume, and quality. Manufacturers must match the assembly method to these needs to ensure reliable performance and cost efficiency.

Product Complexity

Product complexity plays a major role in determining the best pcb assembly method. Complex designs often include a high number of components, advanced packages like BGA or QFN, and multilayer pcb structures. These features increase assembly difficulty and require advanced equipment and skilled technicians.

• More components and larger board sizes raise assembly costs.

• Specialized techniques, such as double-sided SMT or BGA rework, demand precise alignment and thorough inspection.

• Strict quality standards, like IPC-A-610, require detailed inspection and rework.

• Simplifying the design can reduce costs and speed up the pcb assembly process.

Manufacturers often collaborate with clients to optimize designs for manufacturability. This approach helps balance complexity, functionality, and cost.

Volume & Cost

Production volume and cost constraints also influence the choice of pcba process. Large production runs benefit from automation and panelization, which lower per-unit costs. Smaller runs may require different strategies to minimize waste and setup expenses.

• Larger volumes use bigger pcb panels to spread material and setup costs.

• Smaller volumes use smaller panels to reduce waste and tooling complexity.

• Panelization software and close collaboration with the assembler help optimize costs.

• DFA, DFM, and DFT standards support efficient assembly and testing.

LTPCBA supports both prototypes and mid-volume production. The company uses flexible processes and advanced automation to deliver cost-effective solutions for any order size.

Quality Needs

Quality requirements guide the selection of SMT, THT, or mixed assembly in pcba. SMT offers high component density and excellent electrical performance, making it ideal for compact, high-frequency devices. THT provides strong mechanical connections, which are essential for products exposed to physical or thermal stress. Mixed assembly combines both methods to meet demanding reliability and performance standards.

Manufacturers consider factors such as IPC class, surface finish, and inspection methods. LTPCBA meets strict international standards, including ISO, IATF, and UL. The company uses AOI, X-ray, and functional testing to ensure every pcb assembly meets customer expectations.

Tip: Prioritize quality for critical applications. Choose a manufacturer with proven quality control and advanced inspection systems.

PCBA Challenges & Solutions

Modern pcba faces a range of challenges that impact quality control and product reliability. Manufacturers must address design, process, and inspection issues to deliver high-quality assemblies.

DFM & DFA

Design for Manufacturability (DFM) and Design for Assembly (DFA) help engineers identify and resolve manufacturing issues early. These practices improve component placement, soldering quality, and reduce waste. DFM and DFA guide teams to optimize layouts, select compatible parts, and plan for efficient assembly. Automated pick-and-place machines and AOI systems ensure accurate placement and alignment. By applying DFM principles, manufacturers minimize redesigns and speed up time-to-market. Collaboration between design and production teams leads to fewer manufacturing defects and better resource use.

Proactive DFM and DFA practices support quality control by reducing errors and improving yield.

Miniaturization

Miniaturization increases component density and shrinks device size, but it brings new challenges. Fine-pitch components and high-density layouts raise the risk of solder bridges and placement errors. Manufacturers use advanced technologies like SMT, chip-scale packaging, and HDI pcbs to fit more parts into smaller spaces. Flexible substrates and thermal management materials help manage heat in compact designs. Robotic assembly and in-line inspection tools, such as AOI and X-ray, maintain quality control during production. Conformal coatings and rigid-flex designs add durability for devices that face movement or impact.

• High-density interconnects and flexible pcbs allow more connections in tight spaces.

• Automated production lines and testing protocols ensure consistent quality control.

Testing & Inspection

Quality control relies on thorough testing protocols and advanced inspection methods. AOI systems scan for misaligned or missing components, while X-ray inspection reveals hidden defects like solder voids and BGA issues. These non-destructive tools detect internal flaws that visual checks might miss. X-ray imaging uncovers problems such as poor plating, cracks, and solder bridges inside multi-layer pcbs. Manufacturers use these methods to prevent manufacturing defects and ensure every pcba meets strict standards.

LTPCBA uses AOI, X-ray, and other advanced inspection systems to maintain high levels of quality control throughout the pcba process.

Application Guidance

Matching Process to Needs

Selecting the right pcba process for a specific application requires careful consideration of several factors. Engineers start by collaborating with clients to understand project requirements and intended functionality. They design and prototype the pcb layout based on these needs, choosing components for performance, reliability, and availability. Using SMT stencils ensures precise solder paste application, which reduces defects and maintains consistent solder volume. Pick-and-place machines provide accurate placement, especially for fine-pitch parts. Reflow soldering profiles must be controlled to form strong joints, while wave or manual soldering suits through-hole components. Inspection and testing, including AOI and functional testing, verify compliance with design standards. Maintaining a comprehensive Bill of Materials and selecting materials with proper tolerances and thermal management supports manufacturing success. Close collaboration during custom pcba design helps optimize component selection, prototyping, and quality control.

Tip: Address common challenges early by using design rule checks, flexible BOMs, and simulation tools to prevent assembly defects and signal integrity issues.

Best Practices

Successful pcba outcomes depend on following industry best practices throughout the assembly process. Teams precisely control process parameters such as temperature, soldering time, and pressure for each step to ensure consistency. Offline setup verification detects errors before production begins, preventing disruptions. Operator training with standardized procedures minimizes variability and supports consistent execution. Regular calibration and maintenance of SMT equipment avoid defects from misalignment or faulty soldering. Automation and setup control systems interlock production lines if parameters fall outside acceptable ranges, maintaining quality and efficiency. Integrating quality considerations early in the design phase helps mitigate reliability and thermal issues. Engineers account for vulnerabilities in components, such as mechanical stress on ceramic capacitors and QFN packages. Rigorous quality control, including AOI and electrical testing, detects defects early. Staying current with technological advancements in circuit board printing and soldering methods enhances assembly performance. Choosing experienced manufacturers with strong quality assurance and timely delivery capabilities ensures reliable pcba results.

Note: Apply Design for Manufacturability principles, select high-quality materials, and manage inventory effectively to avoid production delays and maintain compliance with industry standards.

Understanding the differences between PCB fabrication and assembly methods helps manufacturers select the right process for each project. Surface mount and through-hole techniques each offer unique benefits and challenges, impacting quality, cost, and application fit. Decision-makers should evaluate manufacturing capabilities, certifications, and support. LTPCBA stands out with advanced quality control, turnkey services, and strong compliance, making it a reliable partner for modern electronics.

FAQ

What is the difference between PCB and PCBA?

A PCB is a bare printed circuit board without components. PCBA refers to a PCB with all electronic components mounted and soldered, making it a functional circuit ready for use.

How does LTPCBA ensure quality in PCBA production?

LTPCBA uses automated optical inspection (AOI), X-ray testing, and strict process controls. The company follows international standards like ISO and UL to guarantee consistent quality for every assembly.

Which PCBA method suits high-frequency applications?

Surface Mount Technology (SMT) works best for high-frequency devices. SMT supports compact layouts and reduces signal interference, making it ideal for smartphones, routers, and advanced electronics.

Can LTPCBA handle both prototypes and mid-volume production?

LTPCBA supports prototype development and mid-volume manufacturing. The company offers flexible solutions, quick quotations, and technical support for projects of different sizes.

What inspection methods does LTPCBA use for complex assemblies?

LTPCBA combines these methods to ensure every assembly meets strict reliability standards.
